Product Model

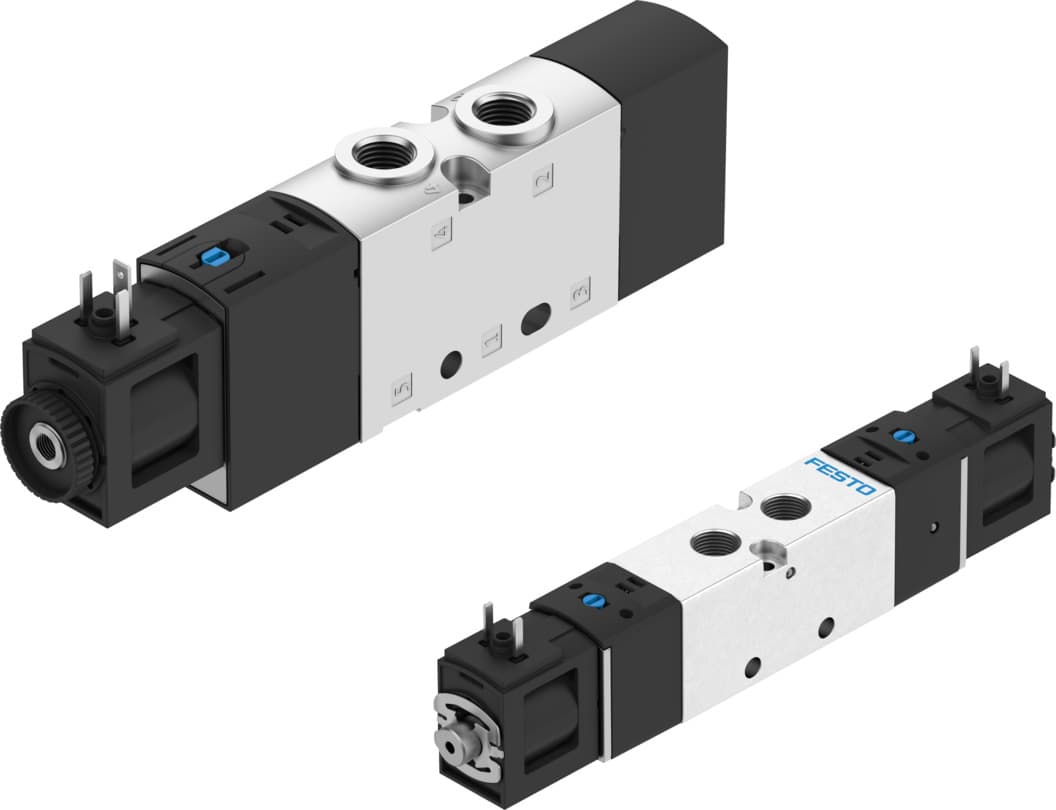

vuvs-30
Selling Points
- 1High flow rate up to 2400 l/min.
- 2Versatile valve functions including 2x3/2-way, 3/2-way, and 5/2-way.
- 3Robust design with CE marking and ATEX certification.
- 4Compatible with various operating voltages (110V AC, 120V AC, 12V DC, etc.).
- 5Easy replacement and maintenance with soft sealing principle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable 2x3/2, open, monostable 2x3/2, open/closed, monostable 3/2, closed, monostable 3/2, open, monostable 5/2, bistable 5/2, monostable 5/3, pressurized 5/3, exhausted 5/3, closed | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 1500l/min 2400l/min |
Pneumatic working port | G3/8 3/8 NPT QS-8 QS-10 QS-12 QS-5/16 QS-3/8 QS-1/2 | Operating voltage | 110V AC 120V AC 12V DC 230V AC 240V AC 24V AC 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve Plate seat |
Reset method | Mechanical spring Pneumatic spring | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
Explosion protection certification outside the EU | EPL Dc (GB) EPL Gc (GB) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
Certificate issuing authority | DNVGL-TAA000011J | ATEX category gas | II 3G |
ATEX category for dust | II 3D | Type of ignition protection for gas | Ex ec IIC T4 Gc X |
Type of (ignition) protection for dust | Ex tc IIIC T115°C Dc X | Explosive ambient temperature | -10°C <= Ta <= +60°C |
Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Type of control | Pilot-controlled | Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
Material of screws | Steel, nickel-plated | Manufacturer ID | 8022017 |
Specifications may be subject to change without notice
