Product Model

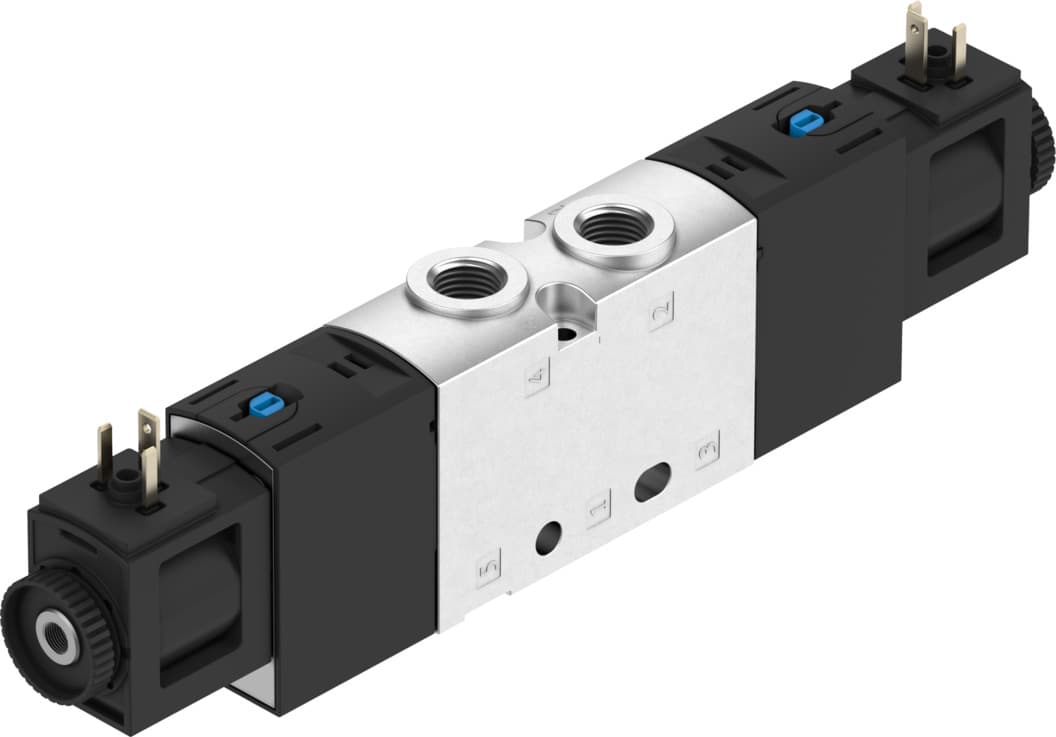

vuvs-l20-b52-zd-g18-f7-1c1
Selling Points
- 1Compact and Robust Design: The Festo VUVS-L20-B52-ZD-G18-F7-1C1 is designed for compact applications with a robust construction.
- 2High Flow Rate: Achieve high flow rates of up to 700 liters per minute, making it suitable for demanding pneumatic systems.
- 3Electric Actuation: Easily controlled with 24VDC, ensuring reliable and efficient operation.
- 4Versatile Mounting Options: Offers various mounting options, including manifold rail and through-hole mounting, for flexible integration.
- 5Durable and Reliable: Built with durable materials like die-cast aluminum and galvanized steel, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 21mm | Standard nominal flow rate | 700l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 5.7mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Lap | Overlap |
Pilot pressure MPa | 0.15MPa 1MPa | Pilot pressure | 1.5bar 10bar |
b-value | 0.35 | C value | 2.9l/sbar |
Changeover time | 10ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1900μs | Max. negative test pulse on 1 signal | 2700μs |
Coil characteristics | 24 V DC: 2.6 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 259g | Electrical connection | Form C as per EN 175301-803 |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum Painted |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 575683 |
Specifications may be subject to change without notice
