Product Model
vuvs-l25-b52-d-n14-f8
Selling Points
- 11300 l/min standard nominal flow rate.
- 2Easy to control with electrical actuation.
- 326.5 mm valve size for space-efficient installations.
- 4Compatible with operating pressures of 1.5-10 bar.
- 5Made from RoHS-compliant materials with soft sealing principle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 26.5mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | 1/4 NPT | Operating pressure | 1.5bar 10bar |
Structural design | Piston gate valve | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNVGL-TAA000011J |
Nominal width | 6.9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |

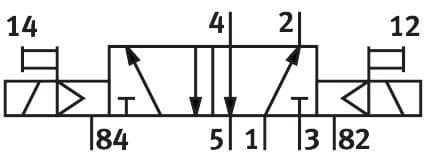

Symbol | 00991013 | Lap | Overlap |
b-value | 0.4 | C value | 5.6l/sbar |
Changeover time | 11ms | Max. positive test pulse with 0 signal | 2000μs |
Max. negative test pulse on 1 signal | 3600μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 322g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | 10-32 UNF-2B | Pilot exhaust air port 84 | 10-32 UNF-2B |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | 1/4 NPT |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum Painted |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 575556 |
Specifications may be subject to change without notice
