Product Model

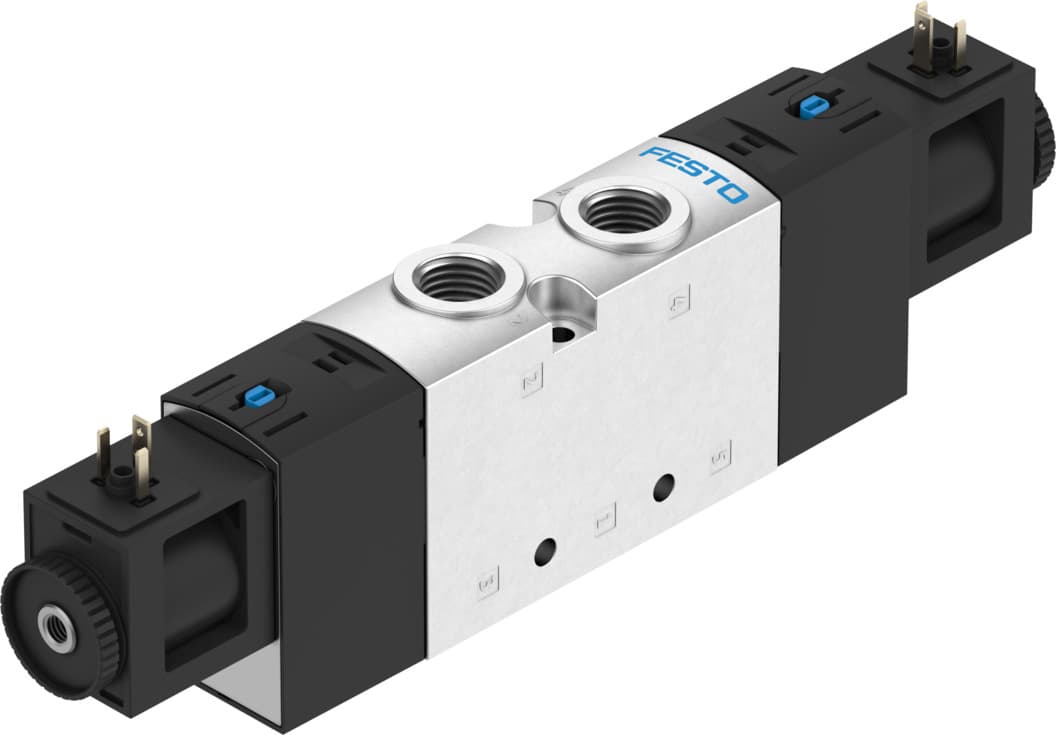

vuvs-l25-b52-zd-g14-f8-1c1
Selling Points
- 1High Flow Rate: 1300 l/min standard nominal flow rate for efficient operation.
- 2Robust Design: Built with die-cast aluminum housing and soft sealing principle for durability.
- 3Electrical Actuation: Easy to control with external pilot air supply and reversible flow direction.
- 4Wide Operating Pressure: Compatible with -0.9 to 10 bar operating pressure range.
- 5IP65 Protection: Meets IEC 60529 standards with IP65 protection against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 26.5mm | Standard nominal flow rate | 1300l/min |
Pneumatic working port | G1/4 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 6.9mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991016 | Lap | Overlap |
Pilot pressure MPa | 0.15MPa 1MPa | Pilot pressure | 1.5bar 10bar |
b-value | 0.4 | C value | 5.6l/sbar |
Changeover time | 11ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 428g |
Electrical connection | Form C as per EN 175301-803 | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 575519 |
Specifications may be subject to change without notice
