Product Model
vuvs-l25-p53u-md-n14-f8
Selling Points
- 1High-Performance 5/3 Pressurized Operation: The VUVS-L25-P53U-MD-N14-F8 offers reliable and precise control with its 5/3 pressurized valve function.
- 2Electric Actuation for Efficiency: Electric actuation ensures quick and precise valve operation, reducing downtime and increasing productivity.
- 3Standard Nominal Flow Rate of 1000 l/min: Designed to handle high flow rates, this valve is suitable for demanding industrial applications.
- 4Operating Pressure Range of 2.5-10 Bar: Compatible with a wide range of operating pressures, making it versatile for various industrial settings.
- 5Compact Design with Valve Size 26.5 mm: The compact design and 26.5 mm valve size make it easy to integrate into complex systems without taking up too much space.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Valve size | 26.5mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | 1/4 NPT | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNVGL-TAA000011J | Nominal width | 6.3mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |

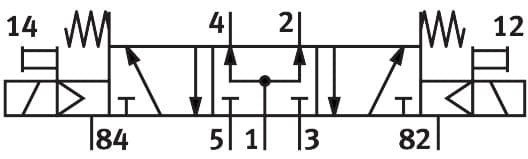

Flow direction | Non-reversible | Symbol | 00991034 |
Lap | Overlap | b-value | 0.4 |
C value | 4.3l/sbar | Switching time off | 48ms |
On switching time | 14ms | Changeover time | 25ms |
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 324g | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot exhaust air port 82 | 10-32 UNF-2B |
Pilot exhaust air port 84 | 10-32 UNF-2B | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 2 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Pneumatic connection 4 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 575560 |
Specifications may be subject to change without notice
