Product Model
vuvs-l30-b52-zd-g38-f8
Selling Points
- 1Robust 5/2 bistable solenoid valve with easy handling.
- 2Standard nominal flow rate of 2300 l/min for efficient operation.
- 3Compatible with compressed air as per ISO 8573-1:2010 [7:4:4].
- 4Operating pressure range of -0.9 to 10 bar for versatile use.
- 5Certified by c UL us – Recognized (OL) for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 2300l/min |
Pneumatic working port | G3/8 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Certification | c UL us - Recognized (OL) |
Maritime classification | See certificate | Certificate issuing authority | DNVGL-TAA000011J |
Nominal width | 9.4mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |

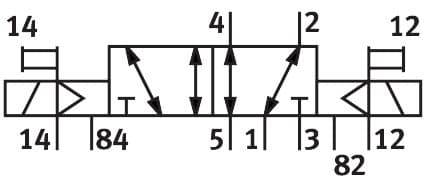

Symbol | 00991016 | Lap | Overlap |
Pilot pressure MPa | 0.15MPa 1MPa | Pilot pressure | 1.5bar 10bar |
b-value | 0.4 | C value | 9.9l/sbar |
Changeover time | 13ms | Max. positive test pulse with 0 signal | 2000μs |
Max. negative test pulse on 1 signal | 3600μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 464g | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pilot air port 12 | G1/8 |
Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Die-cast aluminum Painted | Piston slide material | Wrought aluminum alloy |
Material of screws | Steel, nickel-plated | Manufacturer ID | 575610 |
Specifications may be subject to change without notice
