Product Model

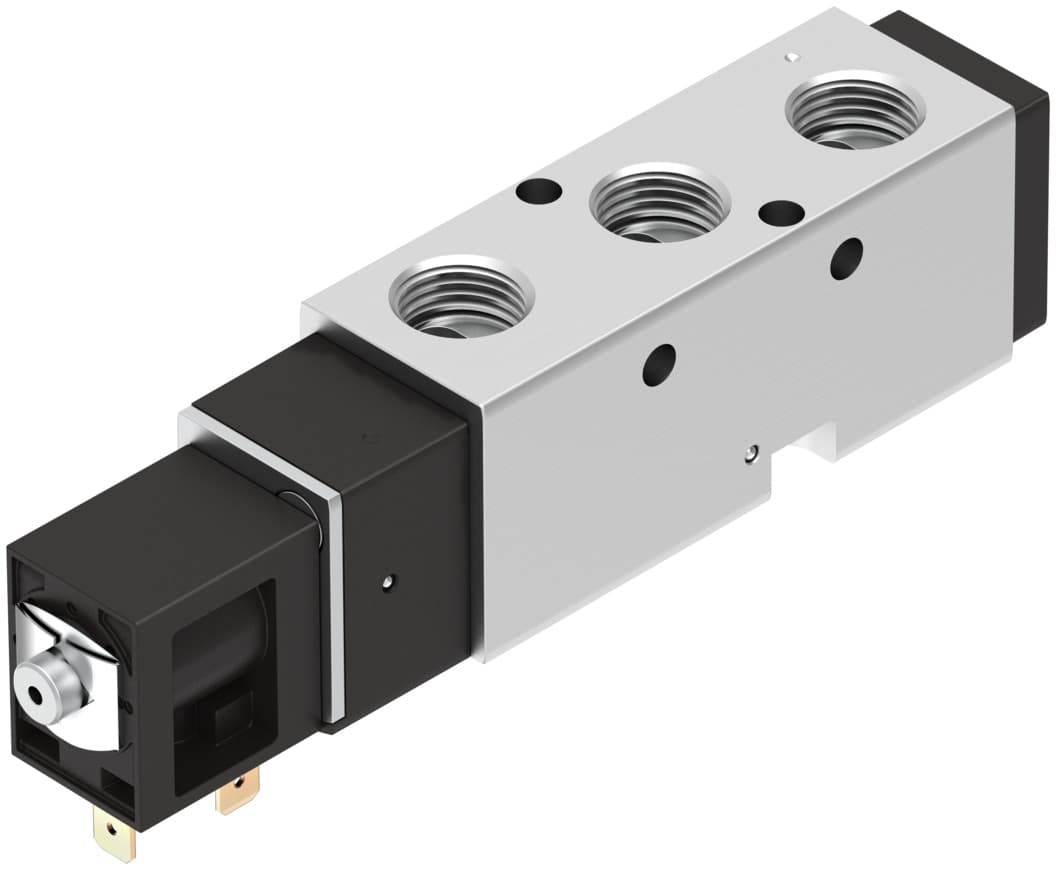

vuvs-lk30-m52-ad-g38-1b2-s
Selling Points
- 1Built with a piston gate valve design for reliable operation.
- 2Standard nominal flow rate of 1600 l/min for efficient fluid control.
- 3Constructed with wrought aluminum alloy for long-lasting performance.
- 4Compliant with IEC 60529 IP65 for protection against dust and water.
- 5Optional mounting positions including manifold rail and through-hole options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | G3/8 | Operating voltage | 24V DC |
Operating pressure | 1.5bar 8bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Degree of protection | IP65 With plug socket as per IEC 60529 |
Nominal width | 8.1mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991049 | Lap | Overlap |
b-value | 0.37 | C value | 7.03l/sbar |
Switching time off | 21ms | On switching time | 16ms |
Duty cycle | 100% | Max. positive test pulse with 0 signal | 2500μs |
Max. negative test pulse on 1 signal | 1100μs | Coil characteristics | 24 V DC: 3.3 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
Product weight | 315g | Electrical connection | Form B As per industrial standard (11 mm) |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
Piston slide material | Wrought aluminum alloy | Manufacturer ID | 8049881 |
Specifications may be subject to change without notice
