Product Model
vuvs-lt20-t32h-md-n18-f7
Selling Points
- 1High flow rate of 600 l/min for efficient fluid control.
- 2Electric actuation for precise and reliable operation.
- 3Robust design with a valve size of 21 mm for durability.
- 4Operating pressure range of 0.25 MPa to 1 MPa for versatile use.
- 5IP65 degree of protection for enhanced environmental resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

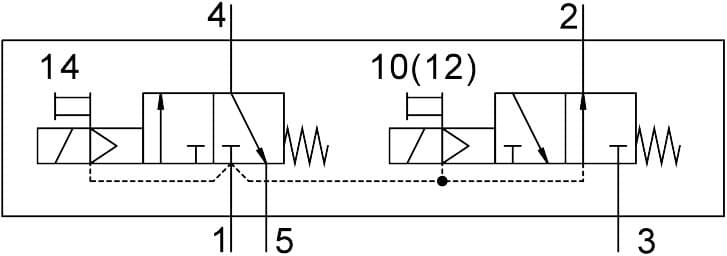

Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
Valve size | 21mm | Standard nominal flow rate | 600l/min |
Pneumatic working port | 1/8 NPT | Operating pressure | 2.5bar 10bar |
Structural design | Plate seat | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Nominal width | 5.2mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00995471 |
Lap | Underlap | b-value | 0.34 |
C value | 2.3l/sbar | Switching time off | 23ms |
On switching time | 9ms | Max. positive test pulse with 0 signal | 1900μs |
Max. negative test pulse on 1 signal | 2700μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 180g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | 10-32 UNF-2B | Pilot exhaust air port 84 | 10-32 UNF-2B |
Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
Pneumatic connection 3 | 1/8 NPT | Note on materials | RoHS-compliant |
Seals material | HNBR NBR TPE-U(PU) | Housing material | Die-cast aluminum Painted |
Material of screws | Steel, galvanized | Manufacturer ID | 577510 |
Specifications may be subject to change without notice
