Product Model
vuvs-lt20-t32h-mzd-g18-f7
Selling Points
- 1High-Performance Operation: The VUVS-LT20-T32H-MZD-G18-F7 offers reliable 2x3/2-way operation with electric actuation.
- 2Robust Design: Built with a durable die-cast aluminum housing and soft sealing principle for long-lasting use.
- 3Versatile Flow Control: Standard nominal flow rate of 600 l/min and optional flow control for precise air management.
- 4Wide Operating Pressure Range: Compatible with operating pressures from -0.9 to 10 bar, ensuring adaptability in various environments.
- 5Compliance and Certifications: Meets c UL us - Recognized (OL) standards and is RoHS-compliant, ensuring safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open/closed, monostable | Actuation type | Electrical |
Valve size | 21mm | Standard nominal flow rate | 600l/min |
Pneumatic working port | G1/8 | Operating pressure | -0.9bar 10bar |
Structural design | Plate seat | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Nominal width | 5.2mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |

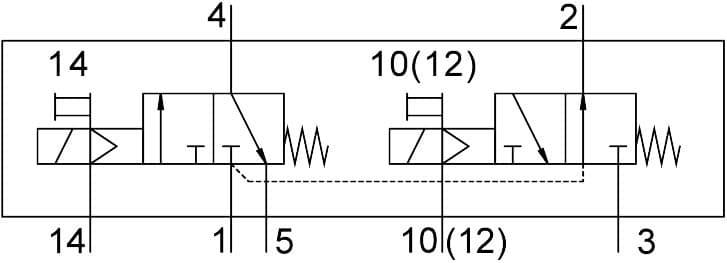

Flow direction | Non-reversible | Symbol | 00995865 |
Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
Pilot pressure | 2.5bar 10bar | b-value | 0.34 |
C value | 2.3l/sbar | Switching time off | 23ms |
On switching time | 9ms | Max. positive test pulse with 0 signal | 1900μs |
Max. negative test pulse on 1 signal | 2700μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 180g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR TPE-U(PU) | Housing material | Die-cast aluminum Painted |
Material of screws | Steel, galvanized | Manufacturer ID | 577503 |
Specifications may be subject to change without notice
