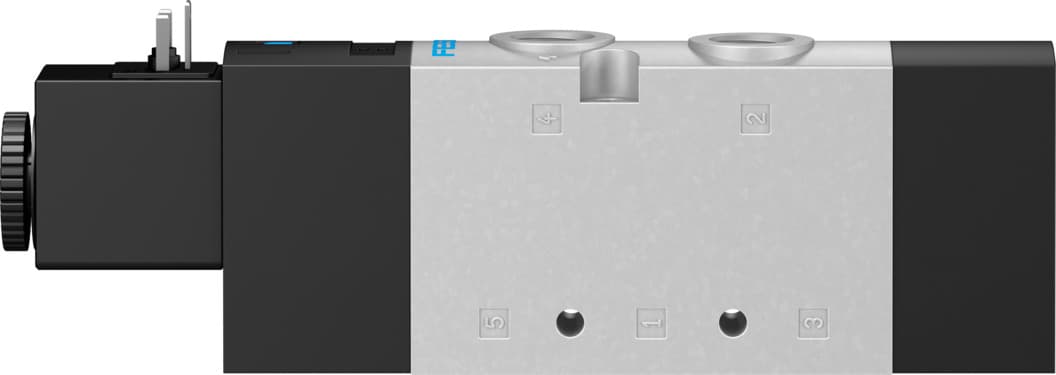

Product Model
vuvs-lt30-m52-mzd-g38-f8-1b2
Selling Points
- 1High-Performance Air Control: Ideal for applications requiring precise air flow management.
- 2Robust Design: Built with a plate seat and mechanical spring reset for reliable operation.
- 3Wide Operating Pressure Range: Supports pressures from 2.5 bar to 10 bar, ensuring versatility in various environments.
- 4Efficient Flow Control: Offers a standard nominal flow rate of 1800 l/min for optimal performance.
- 5Durable and Corrosion-Resistant: Compliant with RoHS standards and featuring moderate corrosion resistance (CRC 2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 1800l/min |
Pneumatic working port | G3/8 | Operating voltage | 24V DC |
Operating pressure | 2.5bar 10bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 8.1mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Non-reversible | Symbol | 00991024 |
Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
Pilot pressure | 2.5bar 10bar | b-value | 0.3 |
C value | 9.9l/sbar | Switching time off | 26ms |
On switching time | 17ms | Duty cycle | 100% |
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 486g |
Electrical connection | Form B As per industrial standard (11 mm) | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot exhaust air port 84 | M5 |
Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
Housing material | Die cast aluminum, painted | Piston slide material | POM |
Material of screws | Steel, galvanized | Manufacturer ID | 8036691 |
Specifications may be subject to change without notice
