Product Model

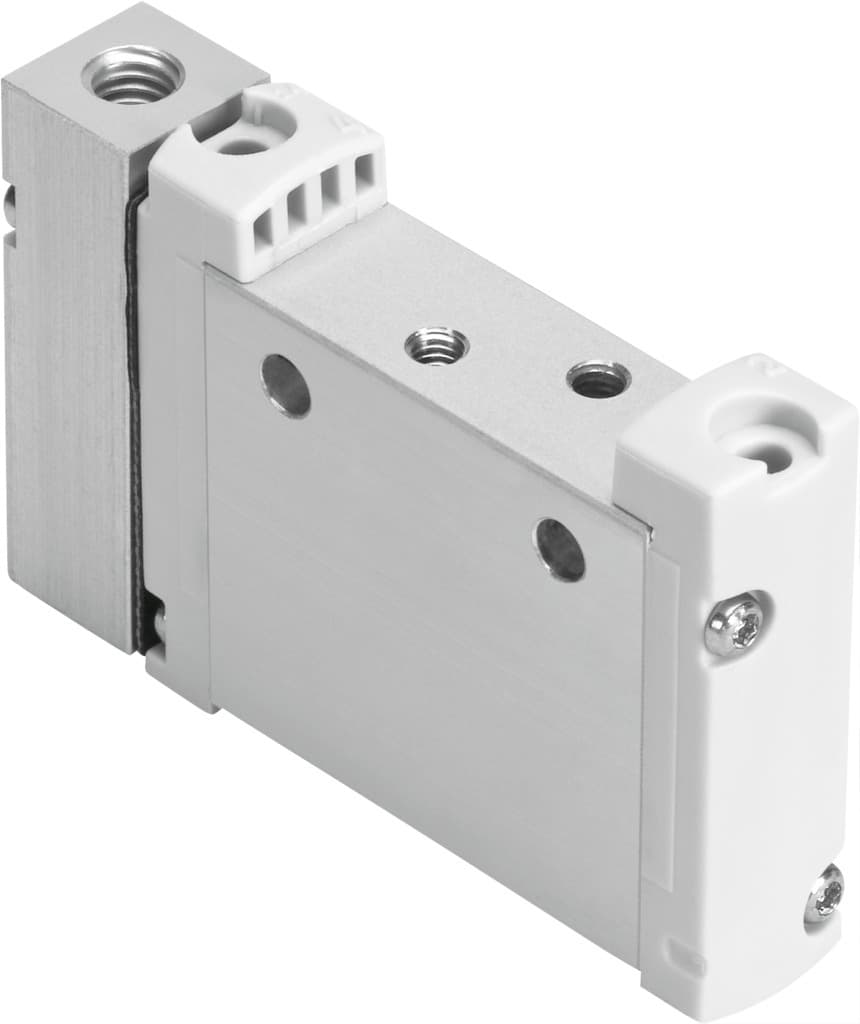

vuwg-l10a-m52-r-m3
Selling Points
- 15/2 monostable valve function for reliable and precise control in pneumatic systems.
- 210 mm valve size for compact installations.
- 3Standard nominal flow rate of 100 l/min for efficient operation.
- 4Operating pressure range of 2.5 to 8 bar and IP40/IP65 protection class for durability.
- 5Optional mounting on manifold rail or through-hole for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Pneumatic |
Valve size | 10mm | Standard nominal flow rate | 100l/min |
Pneumatic working port | M3 | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring Pneumatic spring |
Width dimension | 10.5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | None | Type of control | Direct |
Flow direction | Reversible with restrictions | Symbol | 00992907 |
Lap | Overlap | Pilot pressure | 2.5bar 10bar |
Suitability for vacuum | no | Switching time off | 11ms |
On switching time | 5ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 37g |
Type of mounting | Optionally: On PR rail With through-hole | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | M3 |
Pneumatic connection 2 | M3 | Pneumatic connection 3 | M3 |
Pneumatic connection 4 | M3 | Pneumatic connection 5 | M3 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Aluminum Anodized | Manufacturer ID | 573795 |
Specifications may be subject to change without notice
