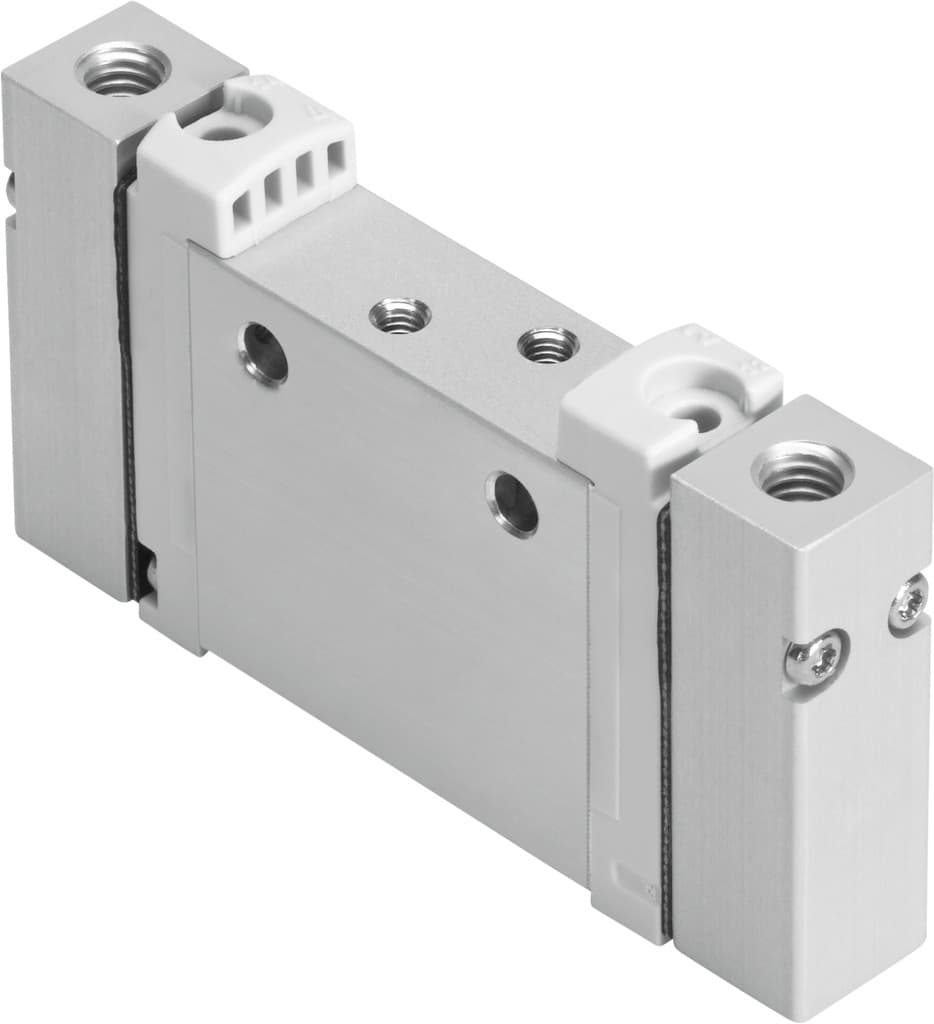

Product Model
vuwg-l10a-p53e-m3
Selling Points
- 1Precise control and versatile operation.
- 2Compact design for easy integration into systems.
- 3High performance in pneumatic applications.
- 4-0.9 to 10 bar, suitable for various industrial conditions.
- 5Meets stringent safety standards for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Pneumatic |
Valve size | 10mm | Standard nominal flow rate | 90l/min |
Pneumatic working port | M3 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Width dimension | 10.5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | None | Type of control | Direct |
Flow direction | Reversible | Symbol | 00991021 |
Lap | Indefinite overlap | Pilot pressure | 3bar 10bar |
Suitability for vacuum | yes | Switching time off | 19ms |
On switching time | 7ms | Changeover time | 9ms |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 40g | Type of mounting | Optionally: On PR rail With through-hole |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | M3 | Pneumatic connection 2 | M3 |
Pneumatic connection 3 | M3 | Pneumatic connection 4 | M3 |
Pneumatic connection 5 | M3 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Aluminum Anodized |
Manufacturer ID | 573798 |
Specifications may be subject to change without notice
