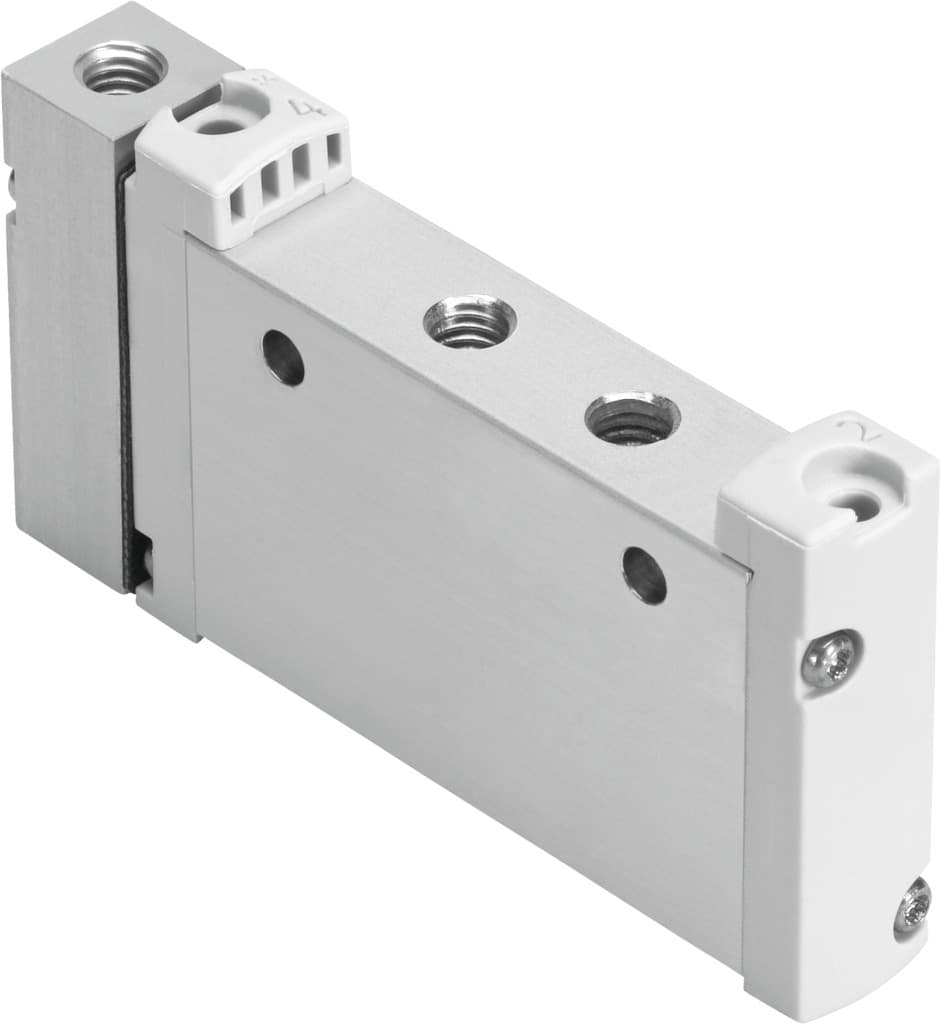

Product Model
vuwg-l10-m52-r-m5
Selling Points
- 1Compliant with ISO 13849-2 for safety-related applications, ensuring reliable operation.
- 25/2-way monostable valve with pneumatic spring return for precise flow control.
- 3Designed for vibration and shock resistance, meeting severity level 2 tests (FN942017-4 and EN 60068-2-6).
- 4Suitable for operating pressures from 2.5 to 8 bar (36 to 116 psi).
- 510 mm valve size with a standard nominal flow rate of 190 l/min.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Pneumatic |
Valve size | 10mm | Standard nominal flow rate | 220l/min |
Pneumatic working port | M5 | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring Pneumatic spring |
Width dimension | 10.5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | None | Type of control | Direct |
Flow direction | Reversible with restrictions | Symbol | 00992907 |
Lap | Overlap | Pilot pressure | 2.5bar 10bar |
Suitability for vacuum | no | Switching time off | 12ms |
On switching time | 6ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 60°C | Product weight | 45g |
Type of mounting | Optionally: On PR rail With through-hole | Pilot air port 12 | M5 |
Pilot air port 14 | M5 | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M5 | Pneumatic connection 3 | M5 |
Pneumatic connection 4 | M5 | Pneumatic connection 5 | M5 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Aluminum Anodized | Manufacturer ID | 573808 |
