Product Model

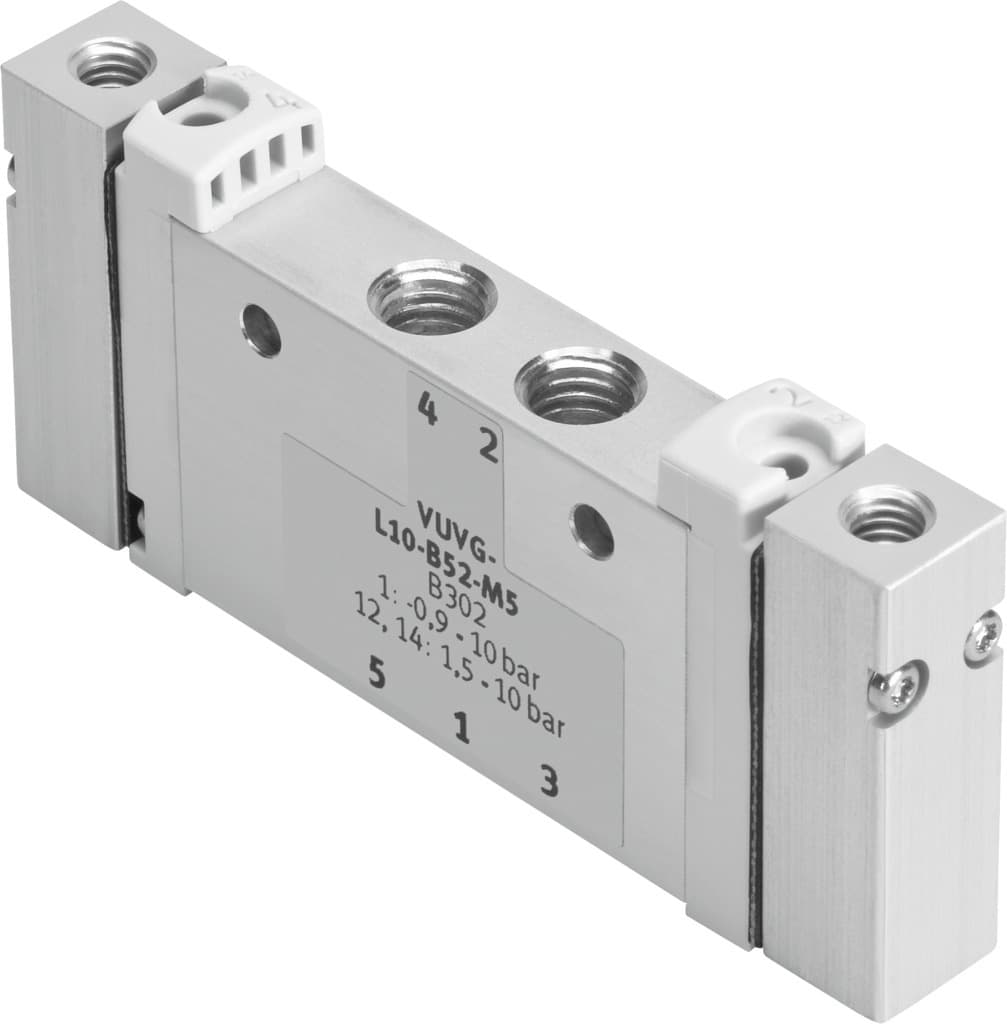

vuwg-l10-p53e-m5
Selling Points
- 15/3 Exhausted Valve Function: Precise control with mid-position exhausted functionality.
- 2Electric Actuation: Efficient operation with electric actuation for reliable performance.
- 3Soft Sealing Principle: Ensures smooth operation with soft sealing for reduced wear.
- 4Piston Gate Valve Design: Robust design for high-pressure applications up to 10 bar.
- 5Compliance with ISO Standards: Meets stringent ISO 8573-1:2010 and ISO 13849-2 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Pneumatic |
Valve size | 10mm | Standard nominal flow rate | 200l/min |
Pneumatic working port | M5 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Width dimension | 10.5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | None | Type of control | Direct |
Flow direction | Reversible | Symbol | 00991021 |
Lap | Indefinite overlap | Pilot pressure | 3bar 10bar |
Suitability for vacuum | yes | Switching time off | 25ms |
On switching time | 8ms | Changeover time | 11ms |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
Product weight | 48g | Type of mounting | Optionally: On PR rail With through-hole |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | M5 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | M5 | Pneumatic connection 4 | M5 |
Pneumatic connection 5 | M5 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Aluminum Anodized |
Manufacturer ID | 573811 |
Specifications may be subject to change without notice
