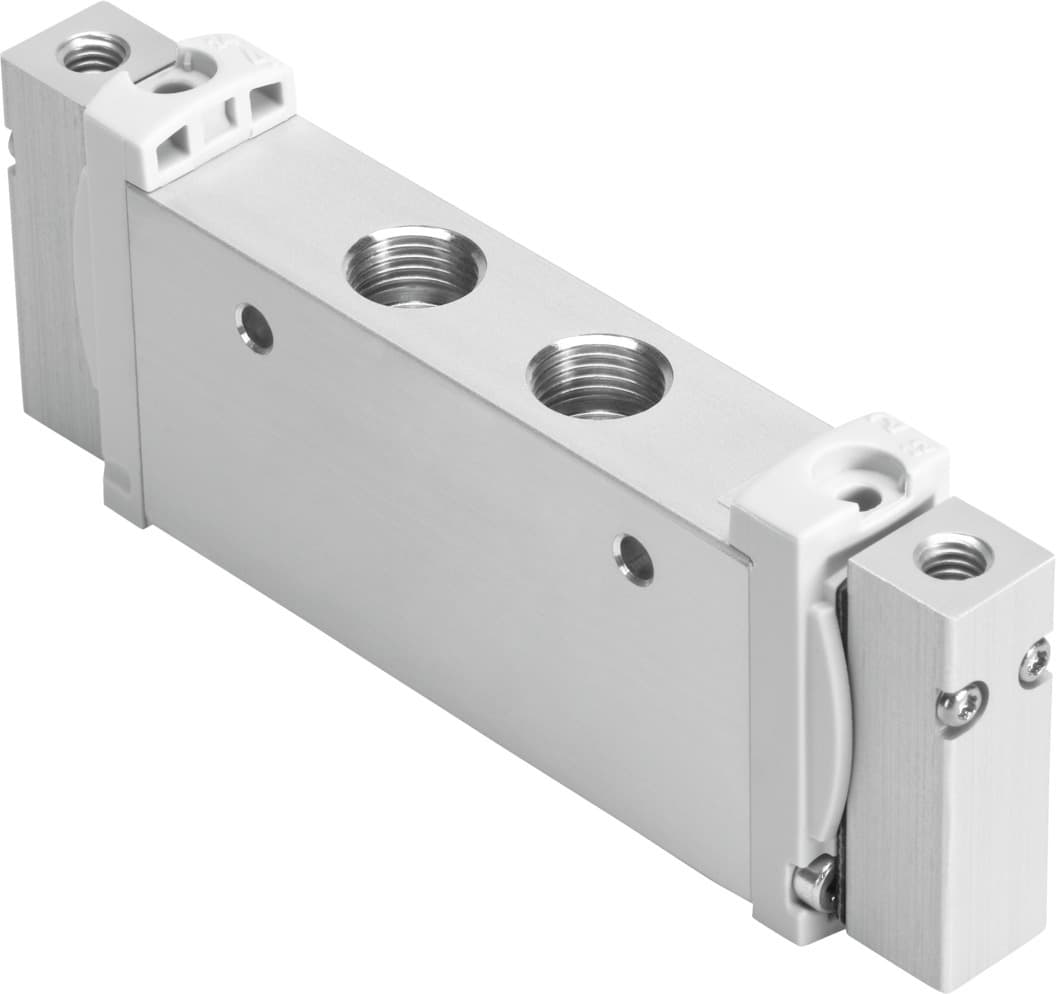

Festo VUWG-L14-P53E-G18: High-Flow Pneumatic Valve with Reversible Flow

Selling Points

1High flow rate of 600 l/min for efficient operation.
2Compact design with a valve size of 14 mm for space-saving installations.
3Reversible flow direction for flexible application use.
4Compatible with compressed air to ISO 8573-1:2010 [7:4:4] for reliable performance.
5Robust construction with mechanical spring reset and soft sealing principle for durability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Valve function	5/3, exhausted	Actuation type	Pneumatic
Valve size	14mm	Standard nominal flow rate	600l/min
Pneumatic working port	G1/8	Operating pressure	-0.9bar 10bar
Structural design	Piston gate valve	Reset method	Mechanical spring
Width dimension	16mm	Exhaust air function	With flow control option
Sealing principle	Soft	Mounting position	Any
Manual override	None	Type of control	Direct
Flow direction	Reversible	Symbol	00991021
Lap	Overlap	Pilot pressure	3bar 10bar
Suitability for vacuum	yes	Switching time off	30ms
On switching time	8ms	Changeover time	16ms
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 5 according to ISO 14644-1	Temperature of medium	-5°C 50°C
Pilot medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Ambient temperature	-5°C 60°C
Product weight	81g	Type of mounting	Optionally: On PR rail With through-hole
Pilot air port 12	M5	Pilot air port 14	M5
Pneumatic connection 1	G1/8	Pneumatic connection 2	G1/8
Pneumatic connection 3	G1/8	Pneumatic connection 4	G1/8
Pneumatic connection 5	G1/8	Note on materials	RoHS-compliant
Seals material	HNBR NBR	Housing material	Aluminum Anodized
Manufacturer ID	573835

Specifications may be subject to change without notice
