Product Model
vuws-lt30-t32c-m-g38
Selling Points
- 1High Flow Rate: 1600 l/min standard nominal flow rate for efficient air handling.
- 2ATEX Compliance: Certified for zones 1, 2, and 21 for safe operation in hazardous environments.
- 3Pneumatic Actuation: Easy to use with direct pilot air supply and internal flow direction.
- 4Robust Design: Made with painted die-cast aluminum housing and galvanized steel screws for durability.
- 5Easy Mounting: Versatile mounting options including on manifold rail or through-hole for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

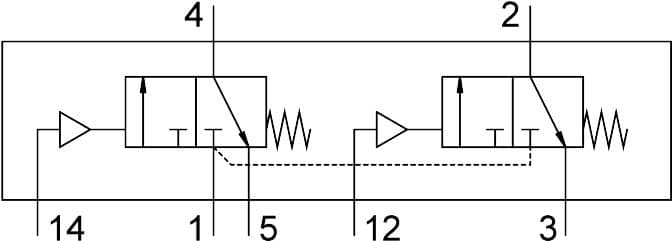

Valve function | 2x3/2, closed, monostable | Actuation type | Pneumatic |
Valve size | 31mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | G3/8 | Operating pressure | 1bar 10bar |
Structural design | Plate seat | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Nominal width | 7.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | None |
Type of control | Direct | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00995852 |
Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
Pilot pressure | 2.5bar 10bar | Switching time off | 37ms |
On switching time | 12ms | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 515g | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot air port 12 | G1/8 |
Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
Housing material | Die cast aluminum, painted | Piston slide material | POM |
Material of screws | Steel, galvanized | Manufacturer ID | 8036706 |
