Product Model
vuws-lt30-t32h-m-n38
Selling Points
- 1High-Performance Pneumatic Valve: The Festo VUWS-LT30-T32H-M-N38 offers a reliable 2x3/2-way open/closed monostable function.
- 2Compact Design: With a 31MM valve size, it fits seamlessly into various industrial setups.
- 3Efficient Flow Control: Standard nominal flow rate of 1600L/min ensures optimal performance in pneumatic systems.
- 4Robust Construction: Made with galvanized steel screws and die-cast aluminum housing, ensuring durability and resistance to corrosion.
- 5Versatile Mounting Options: Can be mounted on manifold rails or through-holes, providing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, open/closed, monostable | Actuation type | Pneumatic |
Valve size | 31mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | 3/8 NPT | Operating pressure | 1bar 10bar |
Structural design | Plate seat | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Nominal width | 7.8mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | None |
Type of control | Direct | Pilot air supply port | Internal |

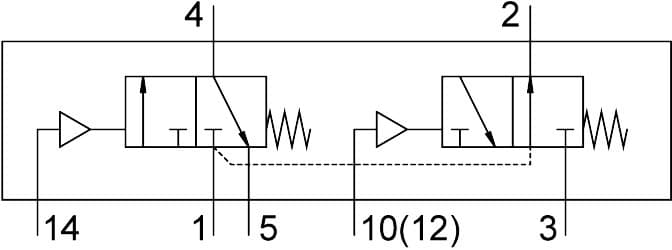

Flow direction | Non-reversible | Symbol | 00995853 |
Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
Pilot pressure | 2.5bar 10bar | Switching time off | 45ms |
On switching time | 12ms | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
Product weight | 524g | Type of mounting | Optionally: On terminal strip With through-hole |
Venting hole connection | Not ducted | Pilot air port 10 | 1/8 NPT |
Pilot air port 14 | 1/8 NPT | Pneumatic connection 1 | 3/8 NPT |
Pneumatic connection 2 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
Pneumatic connection 4 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
Housing material | Die cast aluminum, painted | Piston slide material | POM |
Material of screws | Steel, galvanized | Manufacturer ID | 8036734 |
Specifications may be subject to change without notice
