vzwd-l-m22c-m-g14-30-v-1p4-15

Selling Points

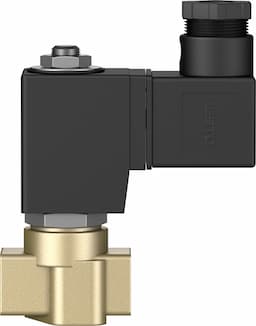

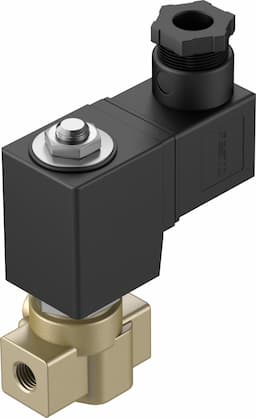

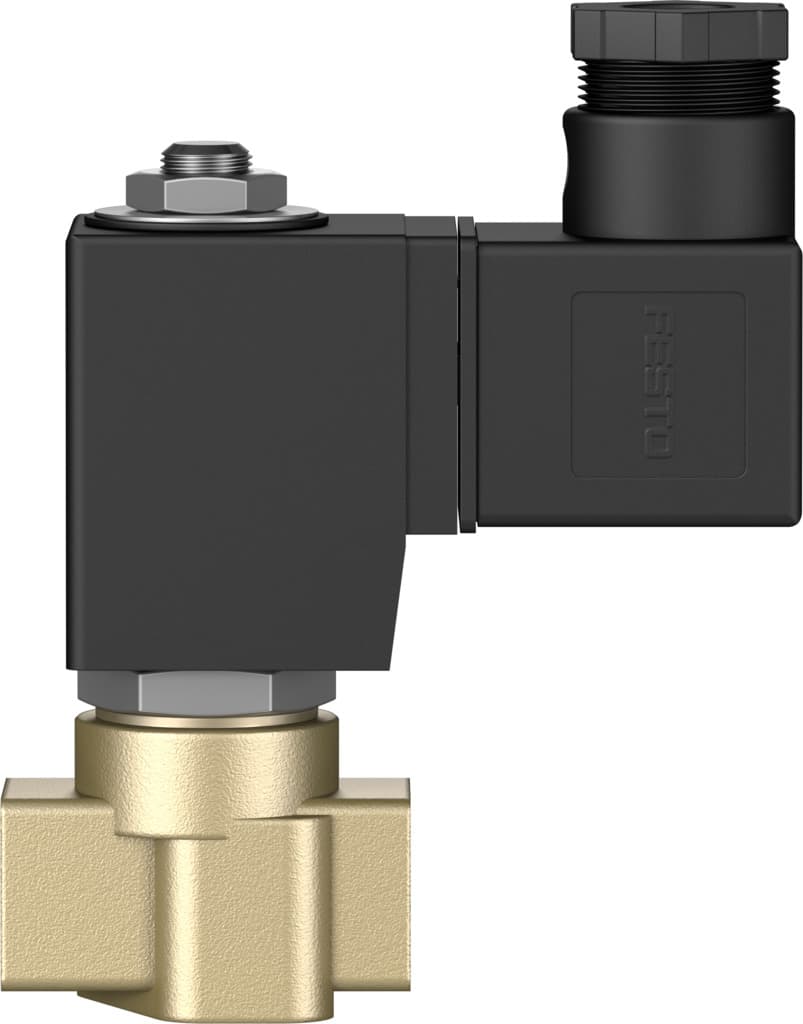

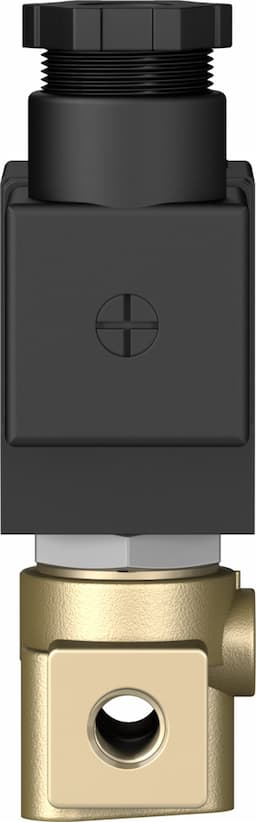

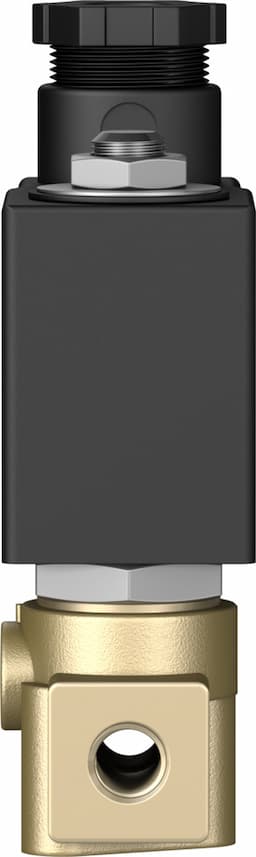

• 1The Festo VZWD-L-M22C-M-G14-30-V-1P4-15 solenoid valve is designed for direct actuation, ensuring precise control over pneumatic systems. Its soft-sealing principle ensures long-lasting performance and minimal energy consumption.
• 2This solenoid valve features a 2/2-way, closed, monostable design, making it suitable for various industrial applications requiring precise flow control. It can be installed in-line and is compatible with compressed air to ISO 8573-1:2010.
• 3The valve operates at a nominal pressure of PN 100 and supports a pressure difference of up to 15 bar. It is powered by a 24 V DC coil with an insulation material class of H, ensuring reliable operation within specified voltage fluctuations.
• 4The VZWD-L-M22C-M-G14-30-V-1P4-15 solenoid valve does not have a manual override, ensuring that the valve remains in its set position until actuated. It is ideal for applications requiring non-reversible flow direction.
• 5Festo’s VZWD-L-M22C-M-G14-30-V-1P4-15 solenoid valve is designed for use with various media, including compressed air, inert gases, mineral oil, water, and neutral fluids. It is subject to change and is manufactured by Festo SE & Co. KG.
