Product Model

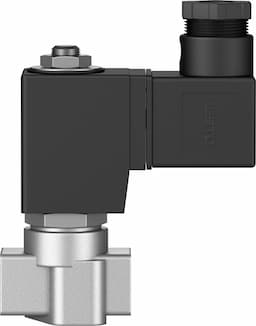

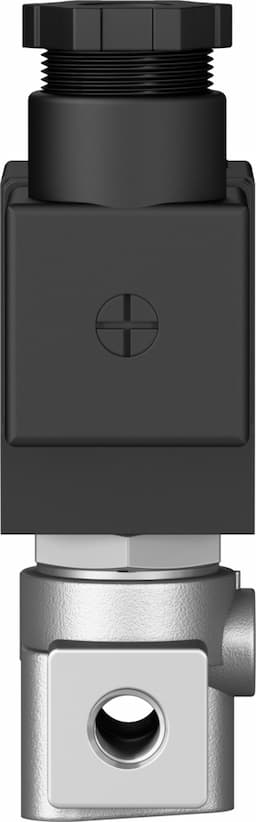

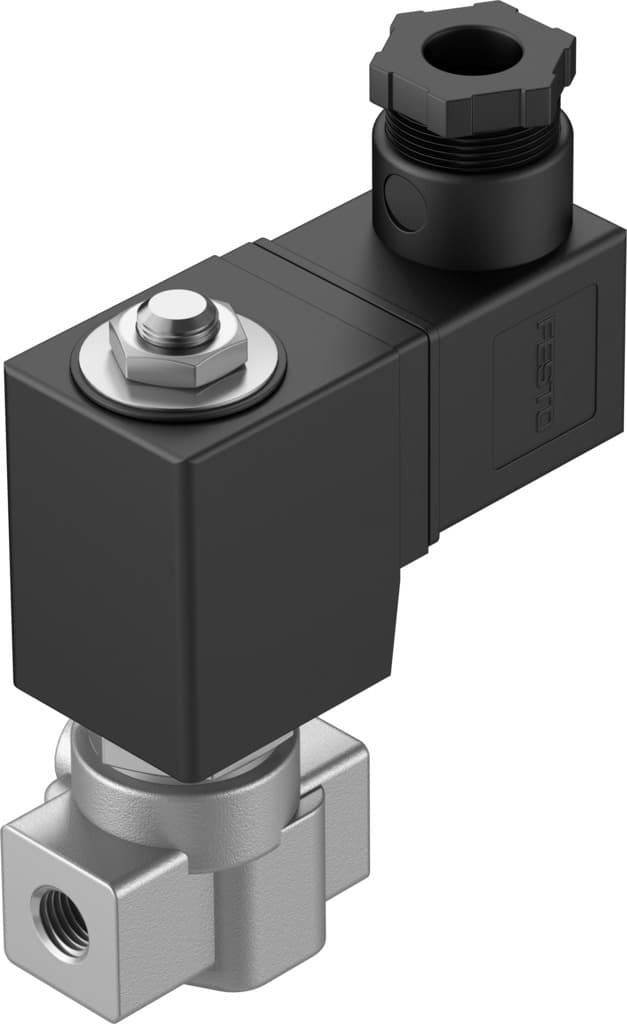

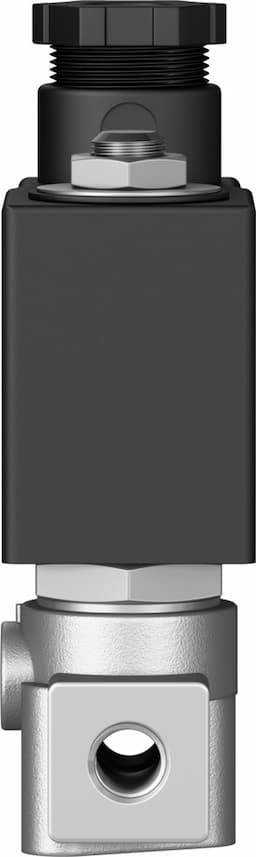

vzwd-l-m22c-m-g18-25-v-1p4-22-r1
Selling Points
- 1The Festo VZWD-L-M22C-M-G18-25-V-1P4-22-R1 solenoid valve is designed to handle high pressures up to 22bar, ensuring reliable operation in demanding industrial environments.
- 2With a 2.5mm size, this solenoid valve is compact and space-efficient, making it perfect for applications where space is limited.
- 3Featuring a G1/8 process connection, the Festo VZWD-L-M22C-M-G18-25-V-1P4-22-R1 solenoid valve is easy to install and integrate into existing systems.
- 4Operating at 24VDC, this solenoid valve provides consistent and reliable performance, ensuring smooth operation in various industrial applications.
- 5Built with high-quality materials, the Festo VZWD-L-M22C-M-G18-25-V-1P4-22-R1 solenoid valve is designed for long-lasting performance and minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Directly controlled poppet valve | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Type of mounting | Line installation | Fitting connection | G1/8 |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 2.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 100 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 24 V DC: 11.0 W |
Insulation class | H | Permissible voltage fluctuations | +/- 10 % |
Duty cycle | 100% | Reset method | Mechanical spring |
Type of control | Direct | Symbol | 00992979 |
Medium pressure | 0psi 319psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 0.16m3/h |
Standard nominal flow rate | 170l/min | On switching time | 20ms |
Switching time off | 18ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | High-alloy stainless steel |
Material number of housing | 1.4305 | Seals material | FPM |
Product weight | 500g | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1491851 |
Specifications may be subject to change without notice
