Product Model

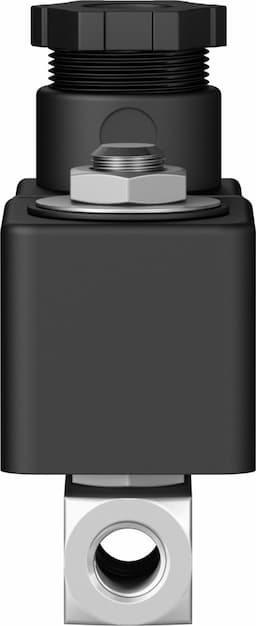

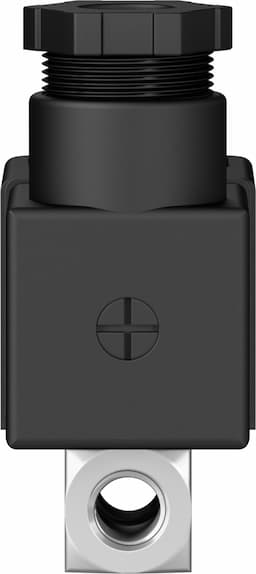

vzwd-l-m22c-m-g18-50-v-3ap4-5-r1
Selling Points
- 1The VZWD-L-M22C-M-G18-50-V-3AP4-5-R1 solenoid valve is a 2/2-way, normally closed (NC) valve designed for direct electrical actuation, ensuring reliable operation in various industrial settings.
- 2This valve features a poppet valve construction with a soft sealing principle, making it suitable for compressed air, inert gases, water, and mineral oil applications, with a maximum operating temperature of +80°C.
- 3The valve is available in various nominal sizes (10, 15, 20, 25, 30, 40, 50 mm) and can be connected using G18 or G14 pipe threads, or N18 and N14 NPT threads, providing flexibility in installation.
- 4The VZWD-L-M22C-M-G18-50-V-3AP4-5-R1 valve is designed with corrosion protection in mind, available in standard brass and high-alloy stainless steel materials, ensuring durability in harsh environments.
- 5With an IP65 protection class and a wide range of operating voltages (24 V DC, 110 V AC, 230 V AC), this solenoid valve is suitable for various industrial control systems, offering a reliable solution for flow control and direction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Directly controlled poppet valve | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Type of mounting | Line installation | Fitting connection | G1/8 |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 100 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA |
Insulation class | F | Permissible voltage fluctuations | +/- 10 % |
Duty cycle | 100% | Reset method | Mechanical spring |
Type of control | Direct | Symbol | 00992979 |
Medium pressure | 0psi 72.5psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 0.35m3/h |
Standard nominal flow rate | 375l/min | On switching time | 20ms |
Switching time off | 18ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | High-alloy stainless steel |
Material number of housing | 1.4305 | Seals material | FPM |
Product weight | 500g | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492010 |
Specifications may be subject to change without notice
