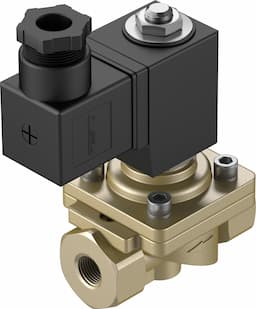

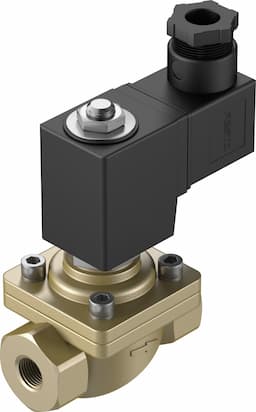

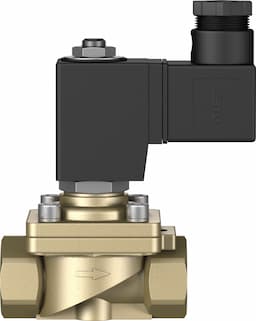

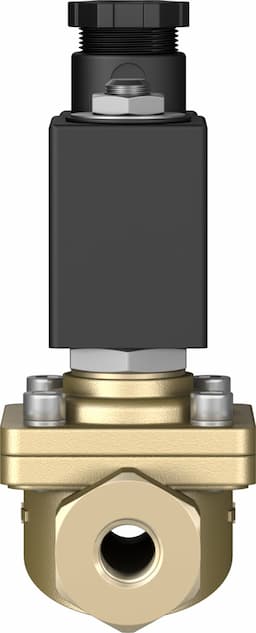

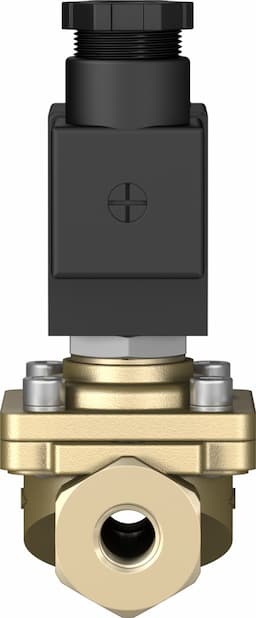

Product Model
vzwf-b-l-m22c-g14-135-3ap4-10
Selling Points
- 1Electric Actuation: Efficiently controlled by an electric solenoid.
- 2Soft Sealing Principle: Ensures reliable and leak-free operation.
- 3Non-Reversible Flow Direction: Designed for one-way flow applications.
- 4G1/4 Connection: Easy integration with various piping systems.
- 5IP65 Degree of Protection: Robust against dust and water ingress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | G1/4 |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 13.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA |
Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 145psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 1.8m3/h |
Standard nominal flow rate | 1920l/min | On switching time | 130ms |
Switching time off | 180ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast brass |
Material number of housing | CW617N | Seals material | NBR |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 1000g | CE marking (see declaration of conformity) | as per EU pressure equipment directive As per EU low voltage directive |
UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 1492302 |
Specifications may be subject to change without notice
