Product Model
vzwf-b-l-m22c-n12-135-v-2ap4-10-r1
Selling Points

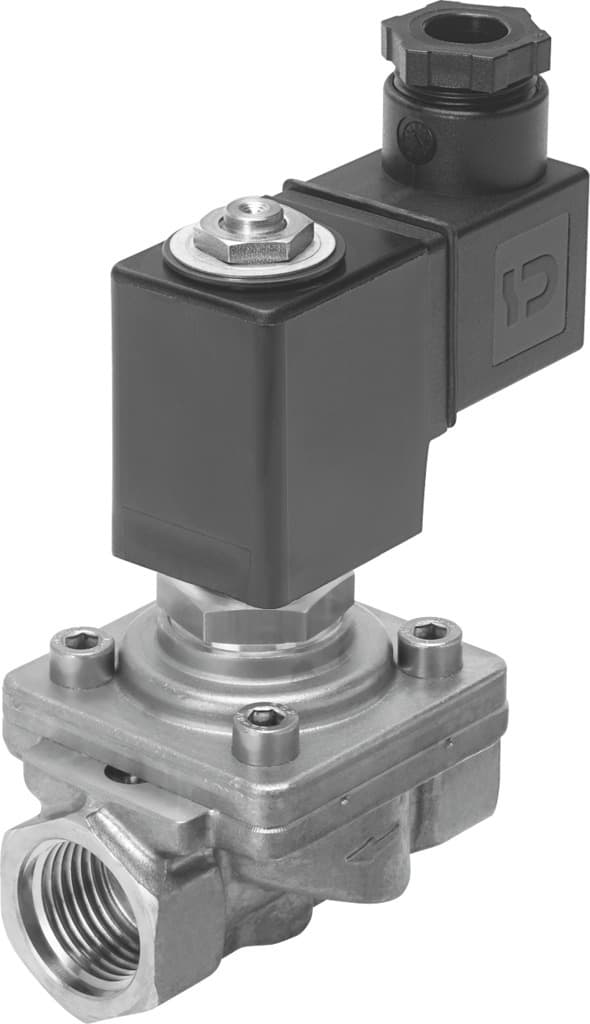

- 1The Festo VZWF-B-L-M22C-N12-135-V-2AP4-10-R1 is a diaphragm valve designed for high-performance applications, ensuring reliable operation in various industrial settings.
- 2This solenoid valve features electric actuation, making it easy to integrate into your automation systems with minimal wiring requirements.
- 3Equipped with a soft sealing principle, the valve provides a secure and durable seal, reducing the risk of leaks and ensuring consistent performance.
- 4The valve operates with non-reversible flow direction, ensuring that compressed air or other media flow in one direction only, which is crucial for many industrial processes.
- 5The VZWF-B-L-M22C-N12-135-V-2AP4-10-R1 is designed to handle compressed air to ISO 8573-1:2010 standards, making it suitable for a wide range of industrial applications involving air or inert gases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | 1/2 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 13.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 145psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 2.5m3/h |
Standard nominal flow rate | 2660l/min | On switching time | 130ms |
Switching time off | 180ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
Material number of housing | 1.4581 | Seals material | FPM |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 1000g | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492296 |
Specifications may be subject to change without notice
