Product Model
vzwf-b-l-m22c-n14-135-v-2ap4-10-r1
Selling Points

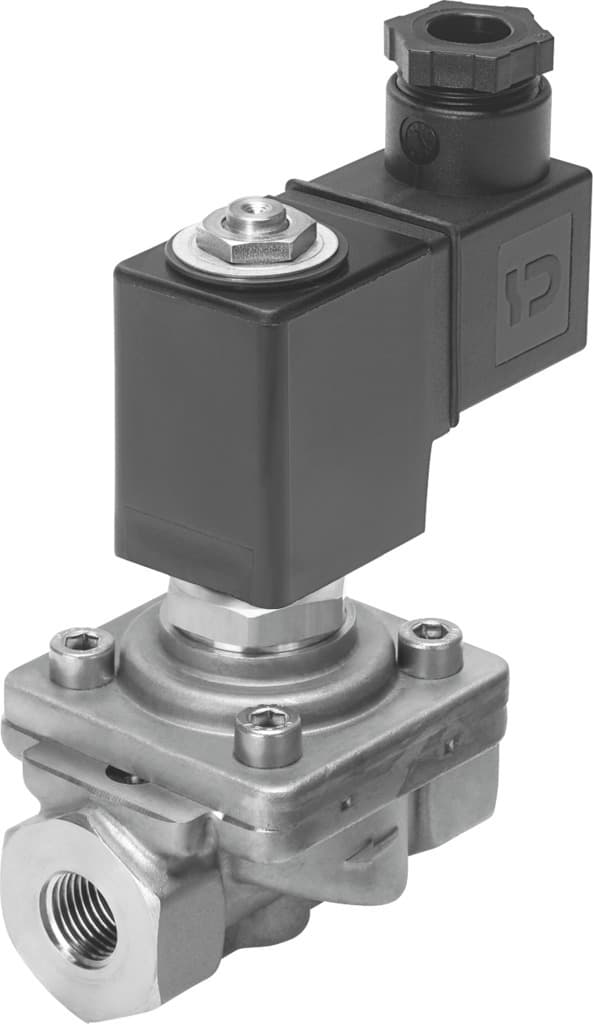

- 1The Festo VZWF-B-L-M22C-N14-135-V-2AP4-10-R1 is a force pilot-operated solenoid valve designed for in-line installation, ensuring efficient and reliable operation in various industrial applications.
- 2This valve features a 2/2-way, normally closed function and is equipped with a soft sealing principle, providing high flow rates and minimal leakage rates.
- 3The valve is compatible with compressed air to ISO 8573-1:2010 and can handle media temperatures ranging from -10 °C to 80 °C, making it versatile for different industrial environments.
- 4The VZWF-B-L-M22C-N14-135-V-2AP4-10-R1 operates at 110 V AC, 50/60 Hz, with a pick-up power of 19.0 VA and holding power of 16.0 VA, ensuring stable and efficient electrical performance.
- 5This solenoid valve is constructed from high-quality materials, including cast brass housing and EPDM seals, ensuring durability and resistance to corrosion, meeting IP65 protection class standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | 1/4 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 13.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 145psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 1.8m3/h |
Standard nominal flow rate | 1920l/min | On switching time | 130ms |
Switching time off | 180ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
Material number of housing | 1.4581 | Seals material | FPM |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 1000g | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492294 |
Specifications may be subject to change without notice
