vzwf-b-l-m22c-n34-275-v-2ap4-6

Selling Points

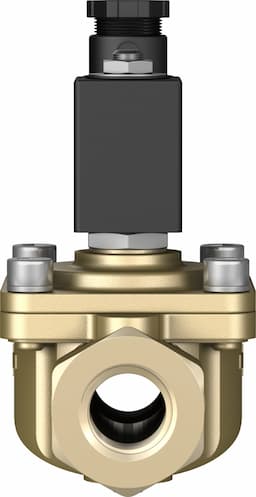

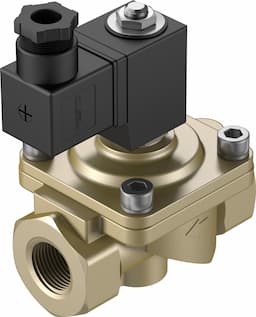

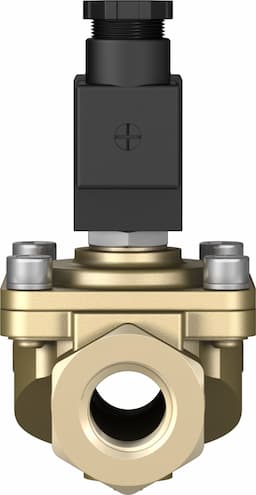

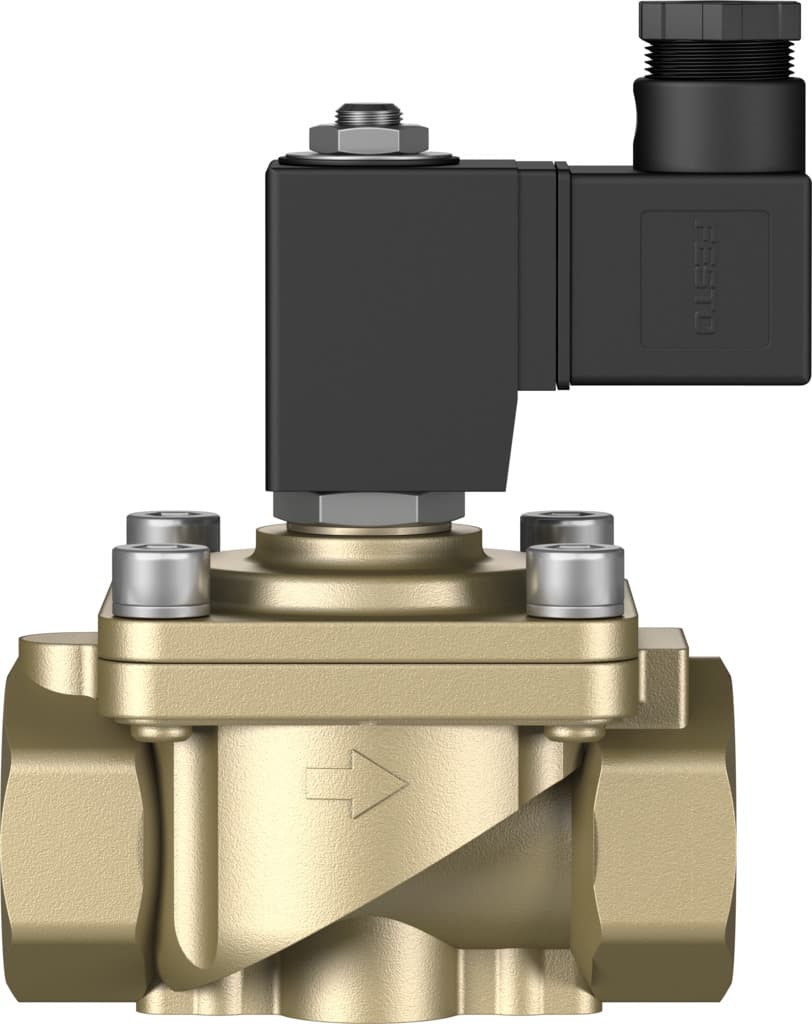

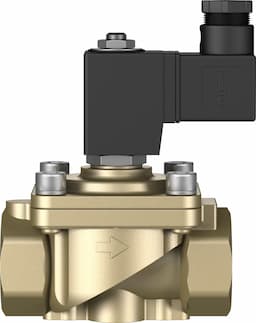

• 1The Festo VZWF-B-L-M22C-N34-275-V-2AP4-6 solenoid valve is a 2/2-way, closed, monostable valve designed for precise control of compressed air. It features a diaphragm valve with electric actuation and soft sealing principle, ensuring reliable operation in various industrial applications.
• 2This solenoid valve is constructed with high-quality materials, including cast brass housing and high-alloy stainless steel screws, ensuring durability and resistance to corrosion. It is also RoHS-compliant and meets VDMA24364 zone III standards.
• 3The VZWF-B-L-M22C-N34-275-V-2AP4-6 valve operates at a nominal pressure of PN 40 and supports a maximum working pressure of 6 bar. It is compatible with various media, including compressed air, inert gases, mineral oil, water, and neutral fluids, making it versatile for different industrial processes.
• 4The valve's electrical connection is designed to meet EN 175301-803 standards, ensuring compatibility with standard electrical systems. It operates at 110 V AC with a pick-up power of 19.0 VA and holding power of 16.0 VA, providing efficient energy usage.
• 5The Festo VZWF-B-L-M22C-N34-275-V-2AP4-6 solenoid valve is designed for in-line installation with a 3/4 NPT connection. It features a non-reversible flow direction and a standard nominal flow rate of 8020 l/min, making it suitable for various pneumatic applications.
