Product Model

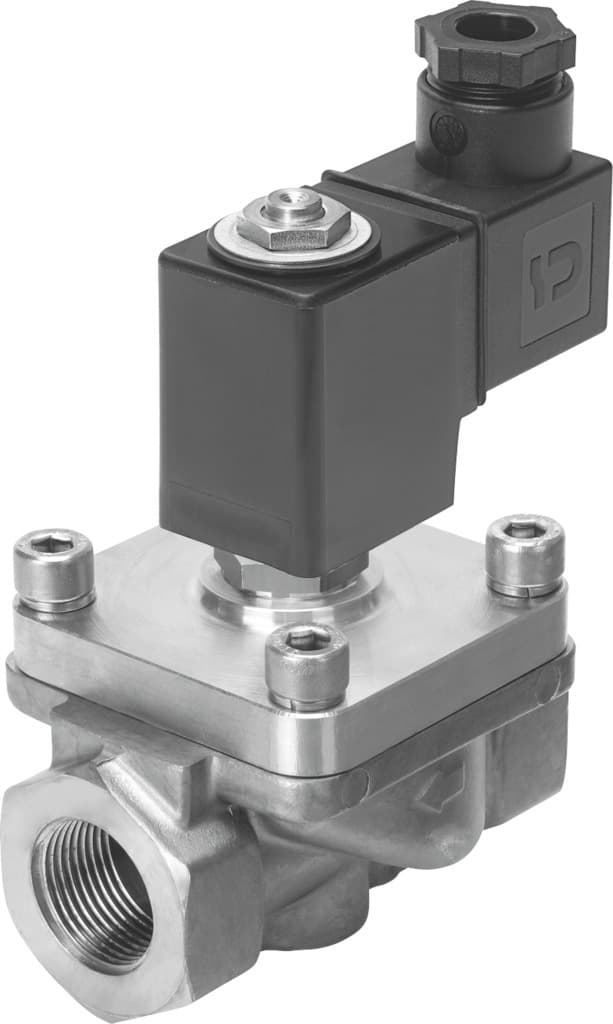

vzwf-b-l-m22c-n34-275-v-2ap4-6-r1
Selling Points
- 1The VZWF-B-L-M22C-N34-275-V-2AP4-6-R1 features a diaphragm valve design with a soft sealing principle, ensuring reliable operation and long service life.
- 2This air solenoid valve is designed for in-line installation with a 3/4 NPT connection, making it easy to integrate into various industrial automation systems.
- 3With a nominal width of 27.5 mm and a flow rate of 7.5 m³/h, the VZWF-B-L-M22C-N34-275-V-2AP4-6-R1 provides efficient air flow control for your industrial applications.
- 4Built with cast stainless steel housing and high-alloy stainless steel screws, this valve offers high corrosion resistance and durability, ensuring it can withstand harsh industrial environments.
- 5The VZWF-B-L-M22C-N34-275-V-2AP4-6-R1 meets international standards, including CE marking and UKCA marking, ensuring compliance with EU low voltage directives and UK instructions for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | 3/4 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 27.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 87psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 7.5m3/h |
Standard nominal flow rate | 8020l/min | On switching time | 275ms |
Switching time off | 290ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
Material number of housing | 1.4581 | Seals material | FPM |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 1500g | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492297 |
Specifications may be subject to change without notice
