Product Model

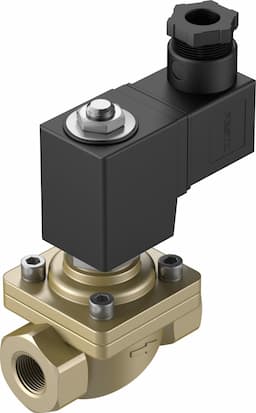

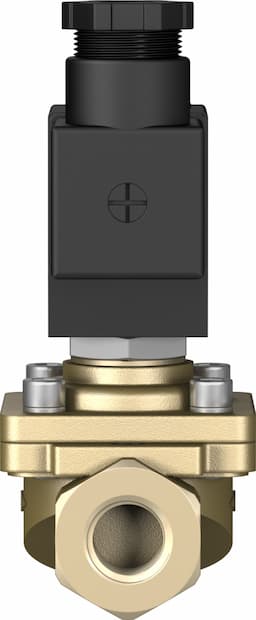

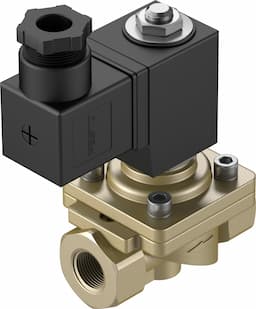

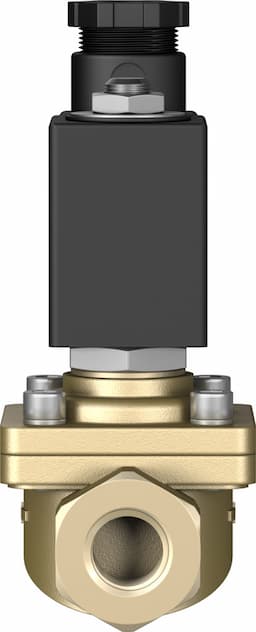

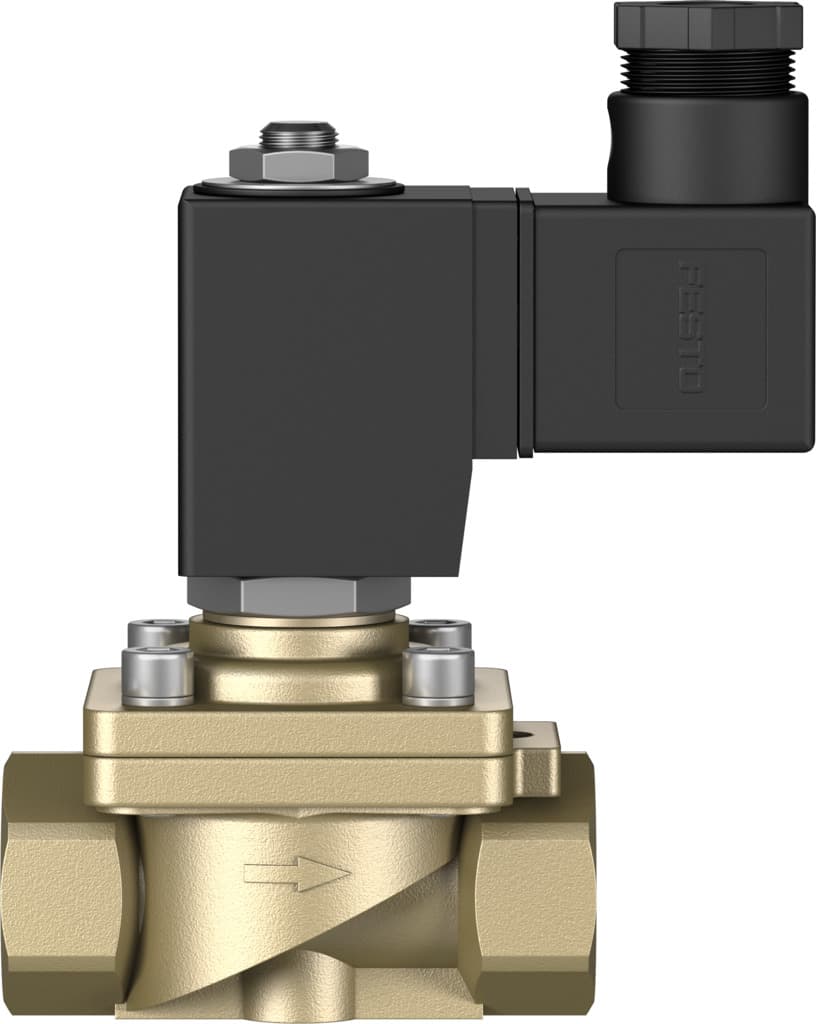

vzwf-b-l-m22c-n38-135-v-2ap4-10
Selling Points
- 1The Festo VZWF-B-L-M22C-N38-135-V-2AP4-10 solenoid valve features electrical actuation, ensuring precise control over compressed air flow with a switching time of 130 ms on and 180 ms off.
- 2With a nominal size of 13.5 mm, this valve is designed for in-line installation, making it ideal for space-constrained applications.
- 3Built with a stainless steel housing and high-alloy stainless steel screws, this valve offers high corrosion resistance and durability.
- 4The valve is compatible with compressed air, inert gases, mineral oil, water, and neutral fluids, making it versatile for various industrial applications.
- 5The valve meets EU and UK regulations for electrical equipment, including CE marking and IP65 degree of protection, ensuring safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | 3/8 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 13.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 145psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 2.2m3/h |
Standard nominal flow rate | 2350l/min | On switching time | 130ms |
Switching time off | 180ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast brass |
Material number of housing | CW617N | Seals material | FPM |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 1000g | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 1492287 |
Specifications may be subject to change without notice
