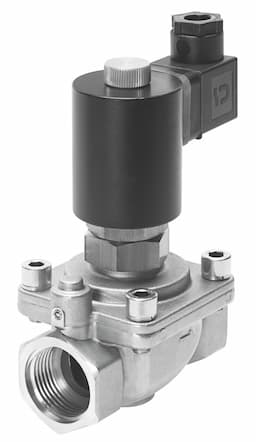

Product Model
vzwf-l-m22c-n2-500-e-2ap4-6-r1
Selling Points
- 1Diaphragm Valve Design: Ensures precise control and durability.
- 2Force Pilot Operation: Provides reliable actuation with minimal effort.
- 3Soft Sealing Principle: Reduces wear and tear, ensuring long valve life.
- 4In-Line Installation: Easy to integrate into existing systems for efficient use.
- 5CE Marked and RoHS Compliant: Meets EU and environmental standards for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Magnet, upright |
Type of mounting | Line installation | Fitting connection | 2 NPT |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 50mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA |

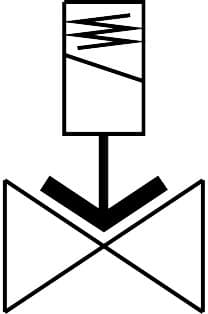

Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
Medium pressure | 0psi 87psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 28m3/h |
Standard nominal flow rate | 29900l/min | On switching time | 1220ms |
Switching time off | 2140ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
Material number of housing | 1.4581 | Seals material | EPDM |
Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
Product weight | 6500g | CE marking (see declaration of conformity) | as per EU pressure equipment directive As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492285 |
Specifications may be subject to change without notice
