Product Model

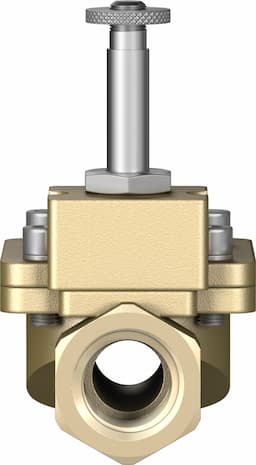

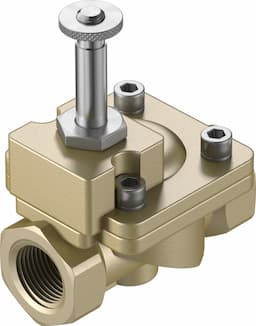

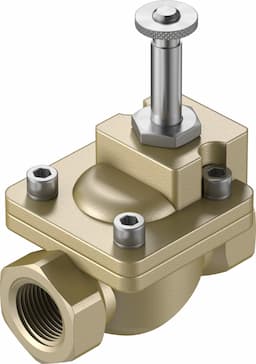

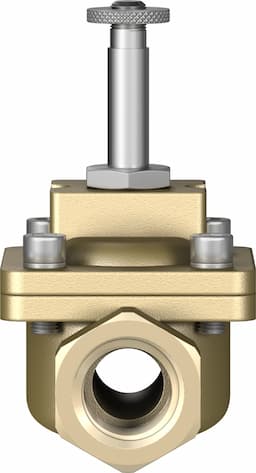

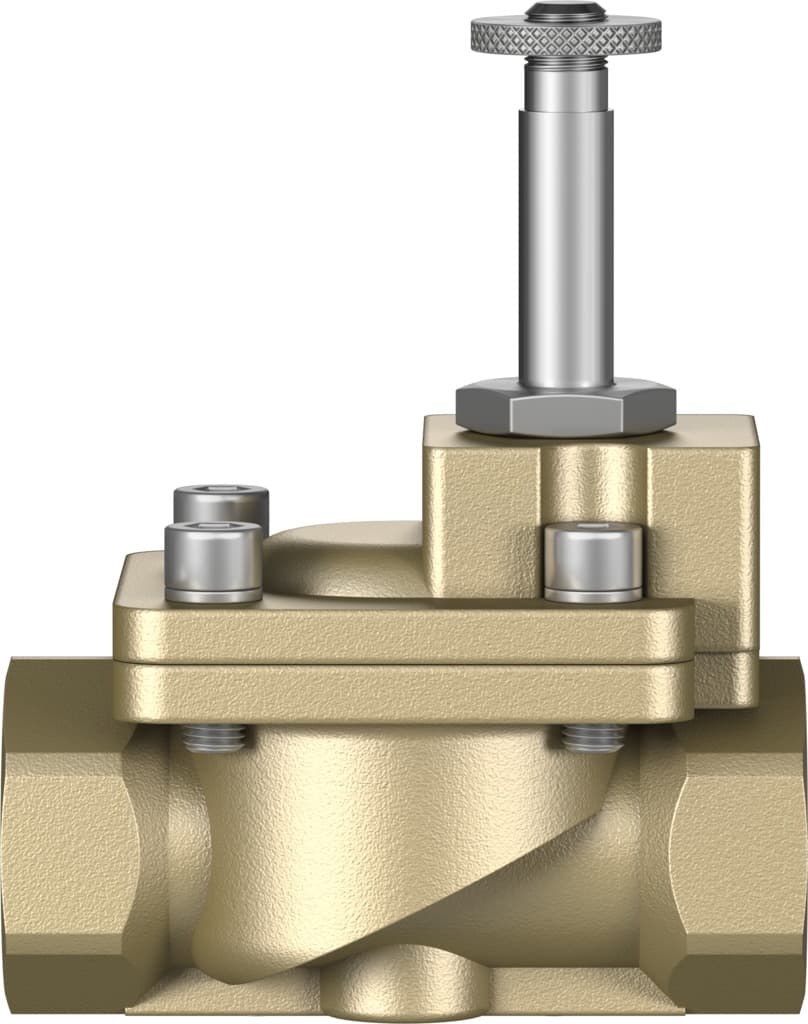

vzwm-l-m22c-g12-f4
Selling Points
- 1The Festo VZWM-L-M22C-G12-F4 solenoid valve offers a standard nominal flow rate of 2400 liters per minute, making it suitable for various industrial applications.
- 2This solenoid valve is designed with standardized dimensions and mounting interfaces, ensuring easy integration into your existing systems.
- 3The VZWM-L-M22C-G12-F4 features reliable switching characteristics, providing consistent performance in demanding industrial environments.
- 4Festo's solenoid valves are known for their high-quality construction and durable design, ensuring long-lasting operation and minimal maintenance.
- 5With its versatile configuration options, the VZWM-L-M22C-G12-F4 can be tailored to meet the specific needs of your application, from flow regulation to pressure control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Preferably upright |
Type of mounting | Line installation | Fitting connection | G1/2 |
Electrical connection | Solenoid coil type MD-... , coil can be ordered as an accessory | Nominal width | 13.5mm |
Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |
Type of control | Pilot-controlled | Symbol | 00995681 |
Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
Flow rate Kv | 2.4m3/h | Standard nominal flow rate | 2400l/min |
On switching time | 8ms | Response time "on" for liquid media | 110ms |
Switching time off | 10ms | Response time "off" for liquid media | 220ms |
b-value | 0.37 | C value | 9.8l/sbar |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
Housing material | Brass | Material number of housing | 2.0402 |
Seals material | NBR | Armature tube material | High-alloy steel |
Product weight | 450g | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Max. torque for cover screw | 20Nm | Max. tightening torque for connecting thread | 105Nm |
Max. tightening torque for coil fastening | 0.5Nm | Manufacturer ID | 546148 |
Specifications may be subject to change without notice
