Product Model

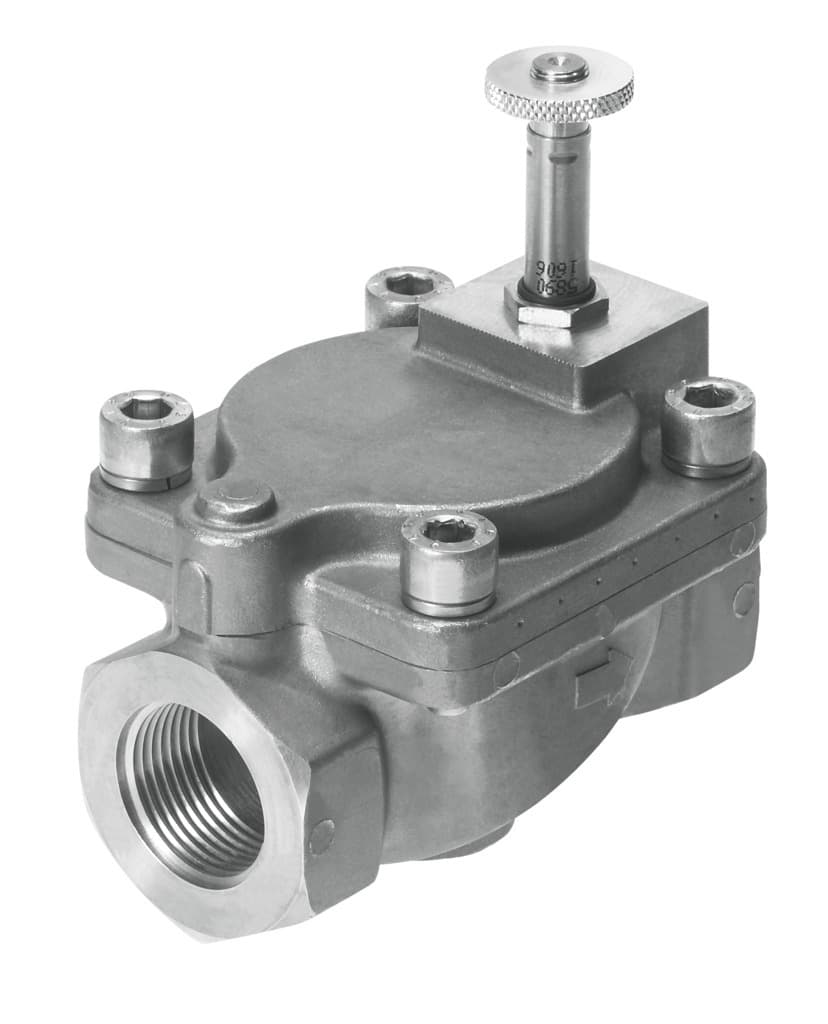

vzwm-l-m22c-g14-f5-r1
Selling Points
- 1The VZWM-L-M22C-G14-F5-R1 is a reverse jet pulse valve designed for creating compressed air pulses, ideal for mechanical cleaning of filters in dust filter systems.
- 2This valve features standardized dimensions and mounting interfaces, ensuring easy integration into various industrial automation setups.
- 3The VZWM-L-M22C-G14-F5-R1 supports differential pressure operation, ensuring smooth functioning and efficient cleaning processes.
- 4Available in different nominal widths, this valve offers flexible options for external or internal exhausting, depending on the application.
- 5With its piloted 2/2 directional control design, the VZWM-L-M22C-G14-F5-R1 provides reliable and precise control over compressed air pulses.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Preferably upright |
Type of mounting | Line installation | Fitting connection | G1/4 |
Electrical connection | Solenoid coil type MH-... , coil can be ordered as an accessory | Nominal width | 13mm |
Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |
Type of control | Pilot-controlled | Symbol | 00995681 |
Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
Flow rate Kv | 1.6m3/h | Standard nominal flow rate | 1400l/min |
On switching time | 8ms | Response time "on" for liquid media | 80ms |
Switching time off | 10ms | Response time "off" for liquid media | 210ms |
b-value | 0.3 | C value | 6l/sbar |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
Housing material | Cast stainless steel | Material number of housing | 1.4581 |
Seals material | NBR | Armature tube material | High-alloy steel |
Product weight | 400g | Corrosion resistance class (CRC) | 3 - High corrosion stress |
Max. torque for cover screw | 20Nm | Max. tightening torque for connecting thread | 35Nm |
Max. tightening torque for coil fastening | 2Nm | Manufacturer ID | 546162 |
Specifications may be subject to change without notice
