Product Model

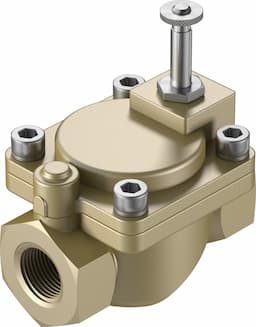

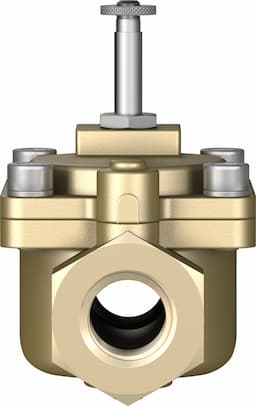

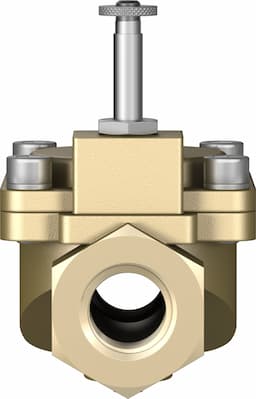

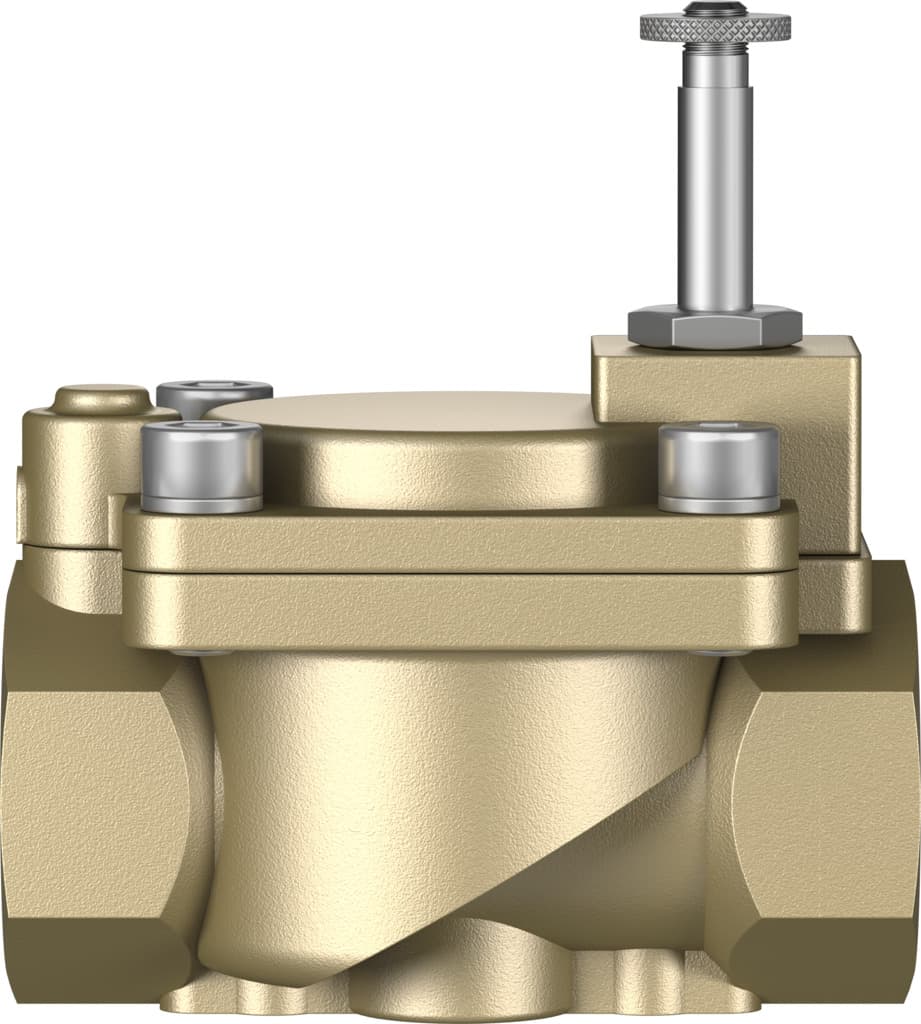

vzwm-l-m22c-g34-f4
Selling Points
- 1The VZWM-L-M22C-G34-F4 solenoid valve is designed for high-performance applications, ensuring reliable operation in compressed air and liquid media environments.
- 2Suitable for both gaseous and liquid media, this valve supports a wide range of applications, including pneumatic systems and industrial automation.
- 3With a preferred vertical mounting position, the VZWM-L-M22C-G34-F4 is easy to install and integrate into your existing systems.
- 4Built with high-quality materials, including brass housing and high-alloy steel plunger tube, this valve offers excellent corrosion resistance and durability.
- 5Featuring a 2/2-way, closed, monostable design, the VZWM-L-M22C-G34-F4 provides precise control over flow rates and pressure differences, ensuring optimal system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Preferably upright |
Type of mounting | Line installation | Fitting connection | G3/4 |
Electrical connection | Solenoid coil type MD-... , coil can be ordered as an accessory | Nominal width | 27.5mm |
Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |
Type of control | Pilot-controlled | Symbol | 00995681 |
Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
Flow rate Kv | 8.5m3/h | Standard nominal flow rate | 10000l/min |
On switching time | 15ms | Response time "on" for liquid media | 400ms |
Switching time off | 12ms | Response time "off" for liquid media | 930ms |
b-value | 0.5 | C value | 39l/sbar |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
Housing material | Brass | Material number of housing | 2.0402 |
Seals material | NBR | Armature tube material | High-alloy steel |
Product weight | 1270g | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Max. torque for cover screw | 30Nm | Max. tightening torque for connecting thread | 200Nm |
Max. tightening torque for coil fastening | 0.5Nm | Manufacturer ID | 546149 |
