Product Model

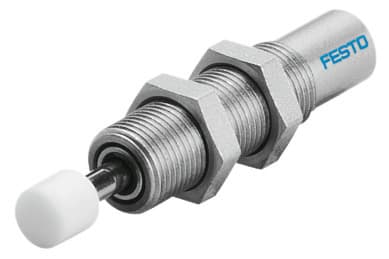

ysr-12-12-c
Selling Points
- 1The Festo YSR-12-12-C shock absorber provides reliable and efficient pneumatic damping, ensuring smooth operation in various industrial applications.
- 2Equipped with self-adjusting cushioning, this shock absorber adapts to changing conditions, maintaining optimal performance and extending its lifespan.
- 3Built with galvanized steel housing and high-alloy steel piston rod, the YSR-12-12-C offers robust construction that withstands moderate corrosion stress and harsh environments.
- 4The shock absorber can be mounted via a lock nut, providing flexibility in installation positions and making it easy to integrate into different systems.
- 5Compliant with RoHS regulations, the YSR-12-12-C features NBR seals and is free from copper and PTFE, ensuring high-quality performance and environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Stroke | 12mm |
Cushioning | Self-adjusting | Mounting position | Any |
Position sensing | None | Symbol | 00991497 |
Max. impact velocity | 3m/s | Reset time at room temperature | 0.2s |
Reset time at min. ambient temperature | 1s | Mode of operation | Pushing Single-acting |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 80°C | Cushioning length | 12mm |
Max. stop force | 1000N | Max. energy absorption per stroke | 10J |
Max. energy absorption per hour | 36000J | Max. residual energy | 0.05J |
Resetting force | 5N | Min. insertion force | 35N |
Product weight | 74g | Load range | 45kg |
Type of mounting | With lock nut | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Steel, galvanized |
Piston rod material | High-alloy steel | Manufacturer ID | 34572 |
Specifications may be subject to change without notice
