Product Model

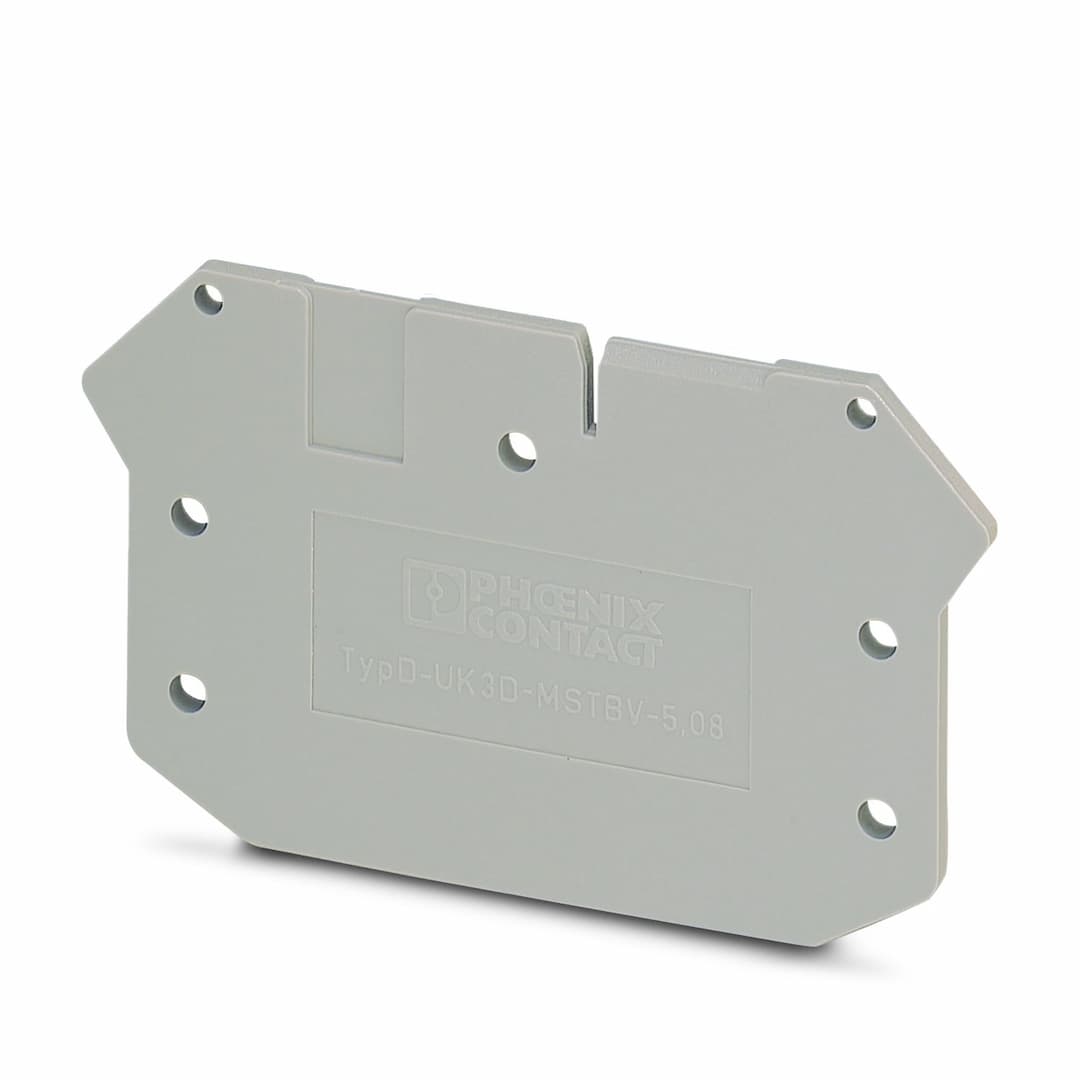

D-UK3D-MSTBV-5,08
Selling Points
- 1High-Voltage Compatibility: Designed for 250V nominal voltage, ideal for various industrial applications.
- 2Robust Construction: Built with a durable gray insulating material for long-lasting performance.
- 3Flexible Connectivity: Offers 3 connections with screw/plug-in connection method for easy installation.
- 4High Current Capacity: Handles up to 24A nominal current, suitable for demanding electrical systems.
- 5Compliance with Standards: Meets WEEE/RoHS compliance since 2003, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Product family | DECKEL + RZ + DP |
Number of positions | 1 | Pitch | 5.08 mm |
Article revision | 02 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Color | gray (RAL 7042) |
Material | PA | Flammability rating according to UL 94 | V2 |
Width | 2 mm | Height | 60 mm |
Depth | 49.5 mm | Pitch | 5.08 mm |
Specifications may be subject to change without notice
