Product Model

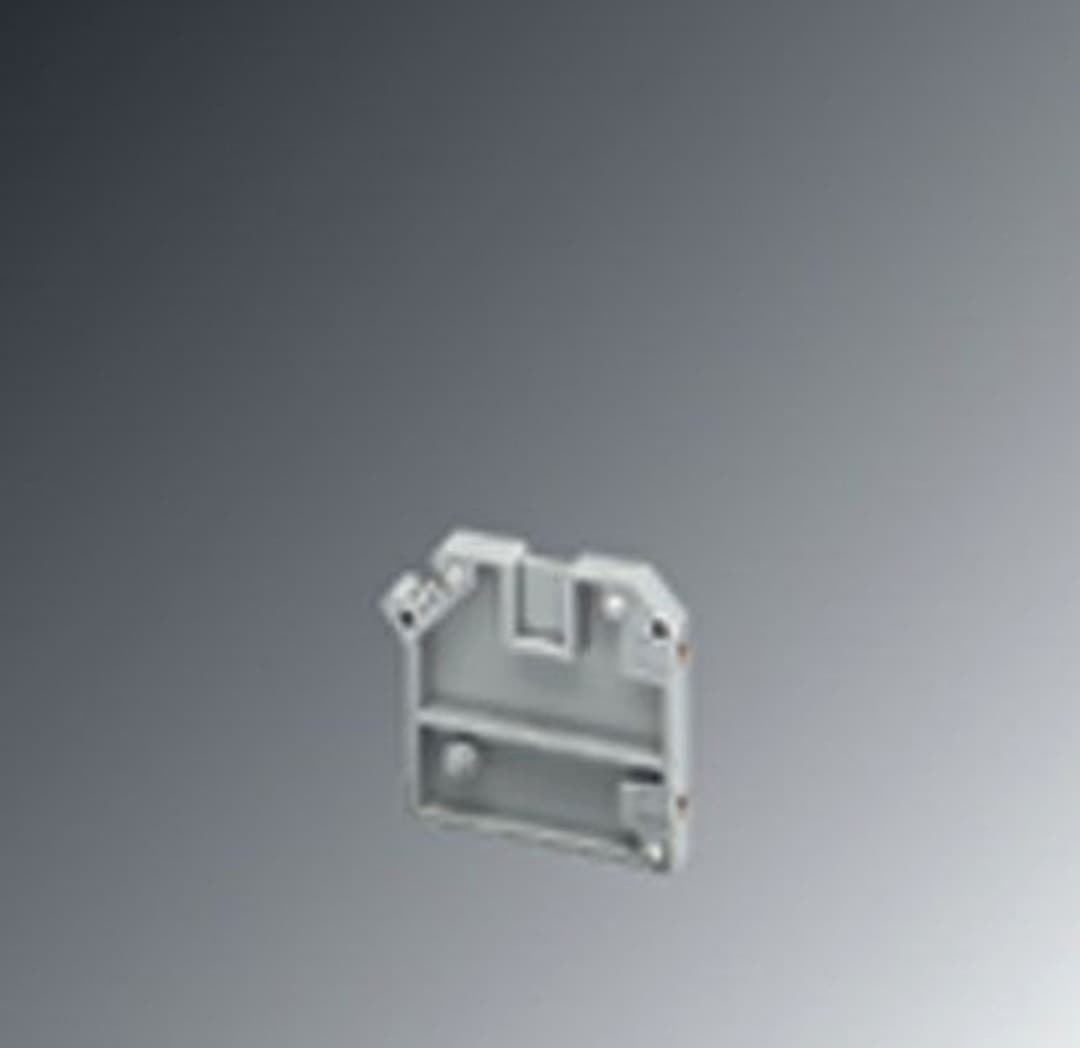

D-UK 3-MSTB-5,08-F
Selling Points
- 15.08 mm pitch and 39.3 mm length for precise fitment.
- 2Made from high-quality PA material for long-lasting performance.
- 3Easy to integrate with various industrial setups.
- 4Designed for a single position, ensuring precise alignment.
- 5Meets China RoHS standards and is environmentally friendly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Product family | DECKEL + RZ + DP |
Number of positions | 1 | Pitch | 5.08 mm |
Article revision | 03 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Color | gray (RAL 7042) |
Material | PA | Width | 5.1 mm |
Height | 39.3 mm | Depth | 47 mm |
Pitch | 5.08 mm |
Specifications may be subject to change without notice
