Product Model

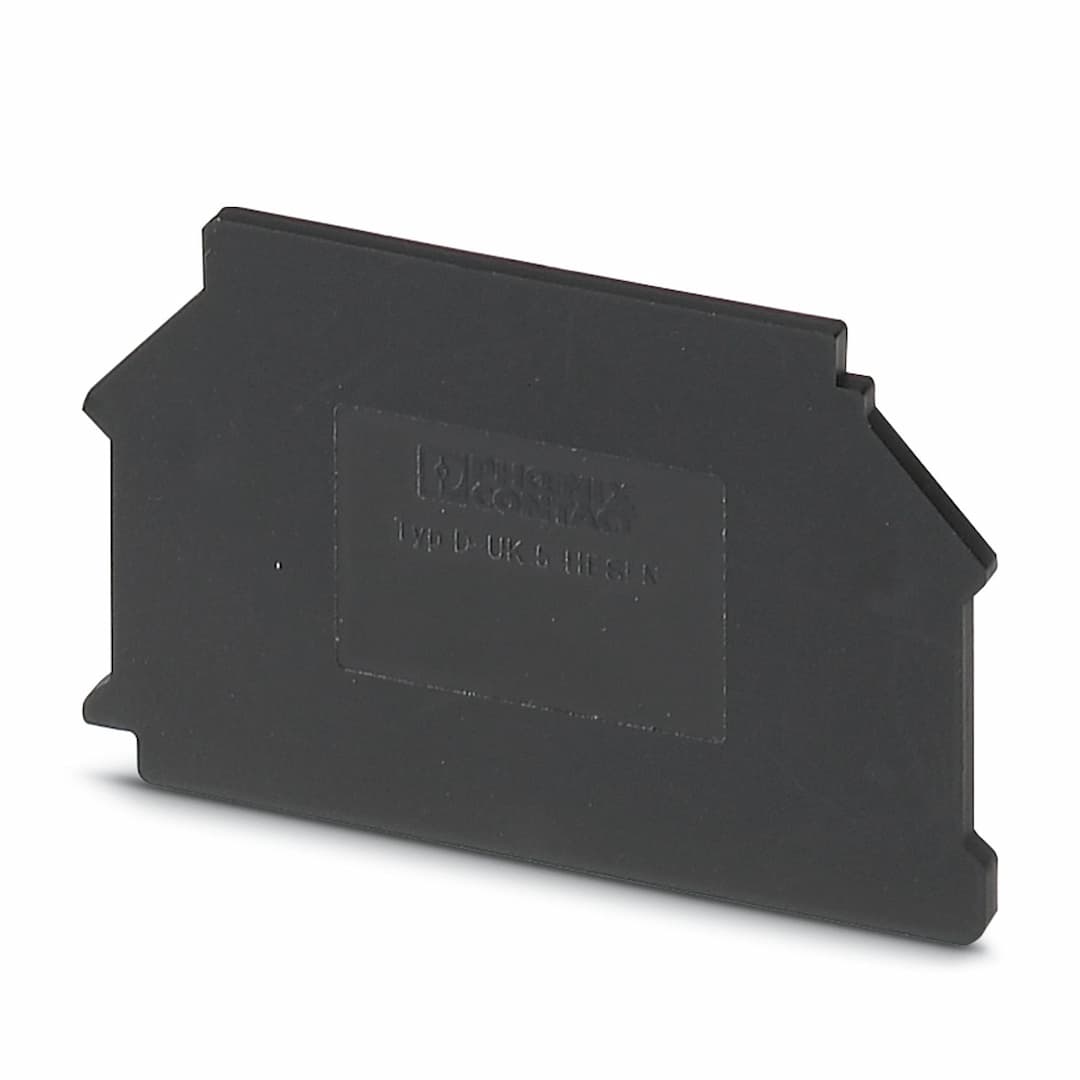

D-UK 5-HESI N
Selling Points
- 1Made from high-quality PA material with a black color.
- 2Depth: 35.05 mm, width: 2.2 mm, height: 58 mm.
- 3Operates from -60 °C to 105 °C and stores/transports between -25 °C and 60 °C.
- 4Designed for mounting on a DIN rail with snap-on foot.
- 5Ideal for various industrial applications with a flammability rating of V0 according to UL 94.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Article revision | 02 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Color | black (RAL 9005) | Material | PA |
Flammability rating according to UL 94 | V0 | Width | 2.2 mm |
Height | 58 mm | Depth | 35.05 mm |
Specifications may be subject to change without notice
