Product Model

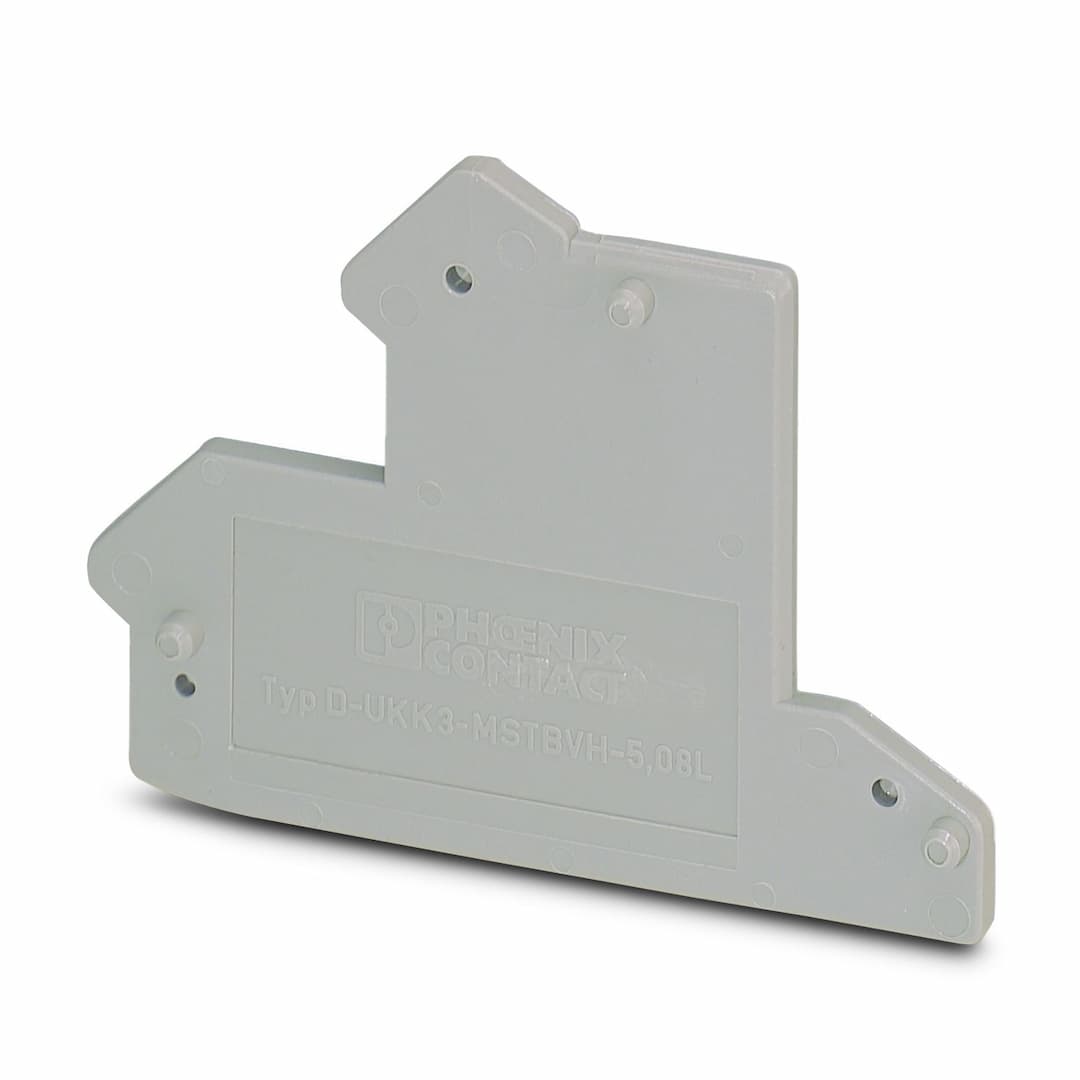

D-UKK 3-MSTBVH-5,08 L
Selling Points
- 1Measures 56.7 mm in length, 2.5 mm in width, and 52.3 mm in height.
- 2Nominal current of 12A, nominal voltage of 250V, and a conductor cross section of 0.2 mm² to 4 mm².
- 3Made from insulating material PA with an inflammability class of UL 94 V2.
- 4Compatible with NS 35/7,5, NS 35/15, and NS 32 mounting types.
- 5WEEE/RoHS-compliant since January 1, 2003.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Product family | DECKEL + RZ + DP |
Number of positions | 1 | Pitch | 5.08 mm |
Article revision | 02 | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Color | gray (RAL 7042) |
Material | PA | Flammability rating according to UL 94 | V0 |
Width | 2.5 mm | Height | 56.7 mm |
Depth | 52.3 mm | Pitch | 5.08 mm |
Specifications may be subject to change without notice
