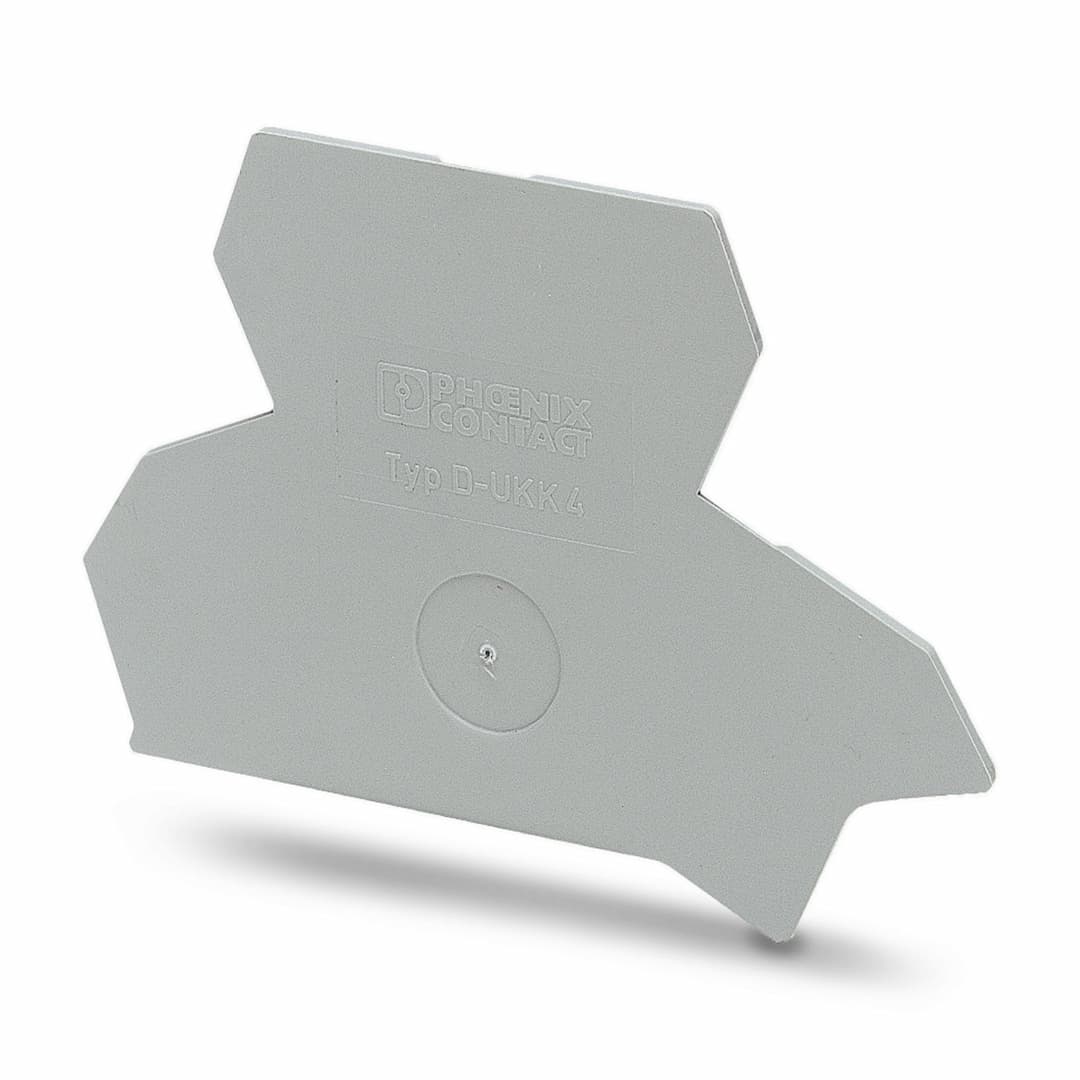

Product Model
D-UKK 4
Selling Points
- 1High-quality material: Made from PA 6.6 for durability and reliability.
- 2Fire protection: Meets DIN EN 45545-2 standards for rail vehicle fire protection.
- 3Temperature resistance: Operates between -60°C to 105°C with short-term max.
- 4Compact design: Dimensions: 42.5 mm length, 1.8 mm width, 35.9 mm height.
- 5Environmentally friendly: Compliant with China RoHS regulations, no hazardous substances above threshold values.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Article revision | 02 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Color | gray (RAL 7042) | Material | PA |
Flammability rating according to UL 94 | V0 | Width | 1.5 mm |
Height | 72 mm | Depth | 59 mm |
Specifications may be subject to change without notice
