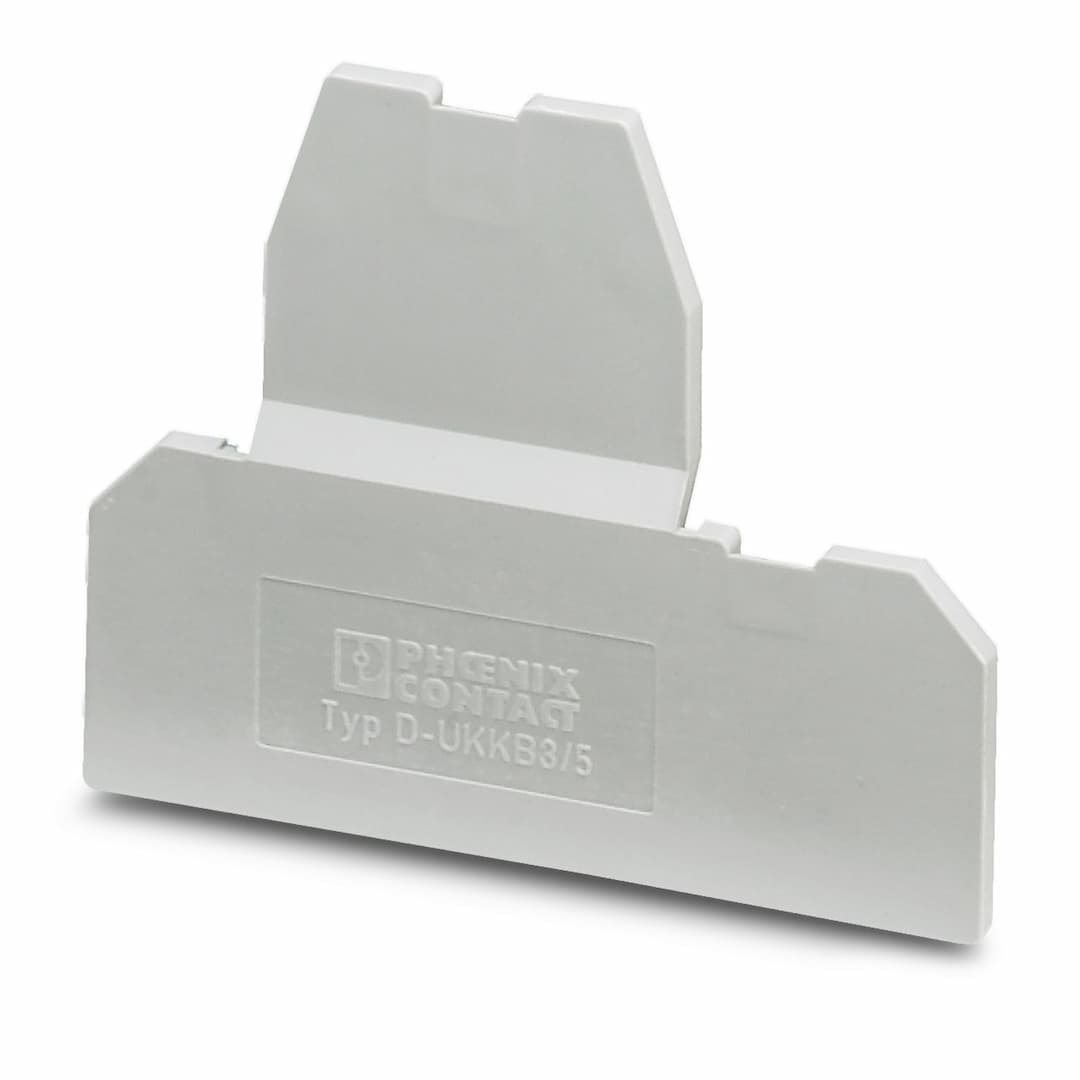

Product Model
D-UKKB 3/5
Selling Points
- 167mm x 2.5mm x 62mm dimensions for easy integration.
- 2Made from high-quality materials for long-lasting performance.
- 3Available in a sleek gray finish to match your equipment.
- 4Sold in packs of 50 for convenient ordering.
- 5Meets precise technical specifications for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Article revision | 02 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Color | gray (RAL 7042) | Material | PA |
Flammability rating according to UL 94 | V0 | Width | 2.5 mm |
Height | 67.2 mm | Depth | 52 mm |
Specifications may be subject to change without notice
