Product Model

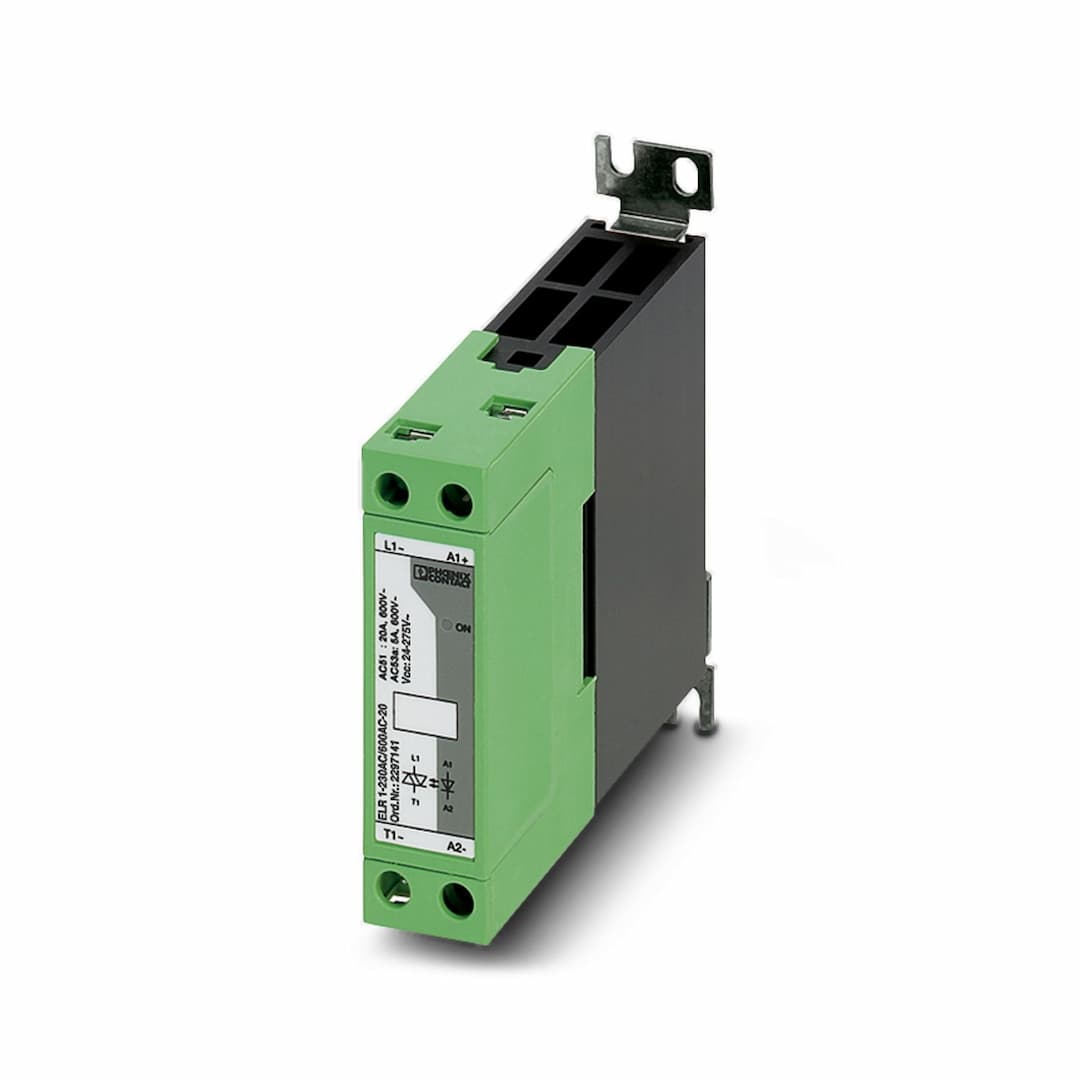

ELR 1-230AC/600AC-20
Selling Points
- 1High switching frequency for efficient control.
- 2Zero voltage switch for safe and reliable operation.
- 3Rated operating current at AC-53a: 5 A for precise load management.
- 4Peak offstate voltage: 1200 V for enhanced safety features.
- 5DIN rail mounting for easy installation and space-saving design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Number of phases | 1 |
Mains type | 1-phase | Test voltage (Input/output) | 4 kV |
Input name | Control input | Rated actuating voltage U | 230 V AC |
Triggering voltage range | 24 V AC ... 275 V AC | Rated actuating current I | approx. 17 mA |
Switching threshold | ≤ 6 V AC (“0” signal)
≥ 22 V AC (“1” signal) | Operating voltage display | Green LED |
Transmission frequency | 6 Hz | Operating voltage range | 42 V AC ... 660 V AC |
Rated operating current at AC-51 | 20 A | Rated operating current at AC-53a | 5 A |
Peak offstate voltage | 1200 V | Mains frequency | 45 Hz
65 Hz |
Load current range | 350 mA ... 20 A (see to derating) | Leakage current | < 3 mA (In off state) |
Residual voltage | < 1.6 V | Surge current | 250 A (t = 10 ms) |
Max. load value | 525 A | Protective circuit | RCV circuit |
Phase angle cos phi min | 0.5 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M4 |
Conductor cross section rigid | 0.5 mm² ... 2.5 mm² | Conductor cross section flexible | 0.5 mm² ... 2.5 mm² |
Conductor cross section AWG | 20 ... 14 | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M4 |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross section flexible | 0.5 mm² ... 4 mm² |
Conductor cross section AWG | 20 ... 12 | Operating voltage display | Green LED |
Width | 22.5 mm | Height | 103 mm |
Depth | 103 mm | Color | green (RAL 6021) |
Ambient temperature (operation) | -30 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards/regulations | EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 55011 | Mounting type | DIN rail mounting |
Assembly note | Can be aligned with ≥ 22.5 mm spacing | Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
