Product Model

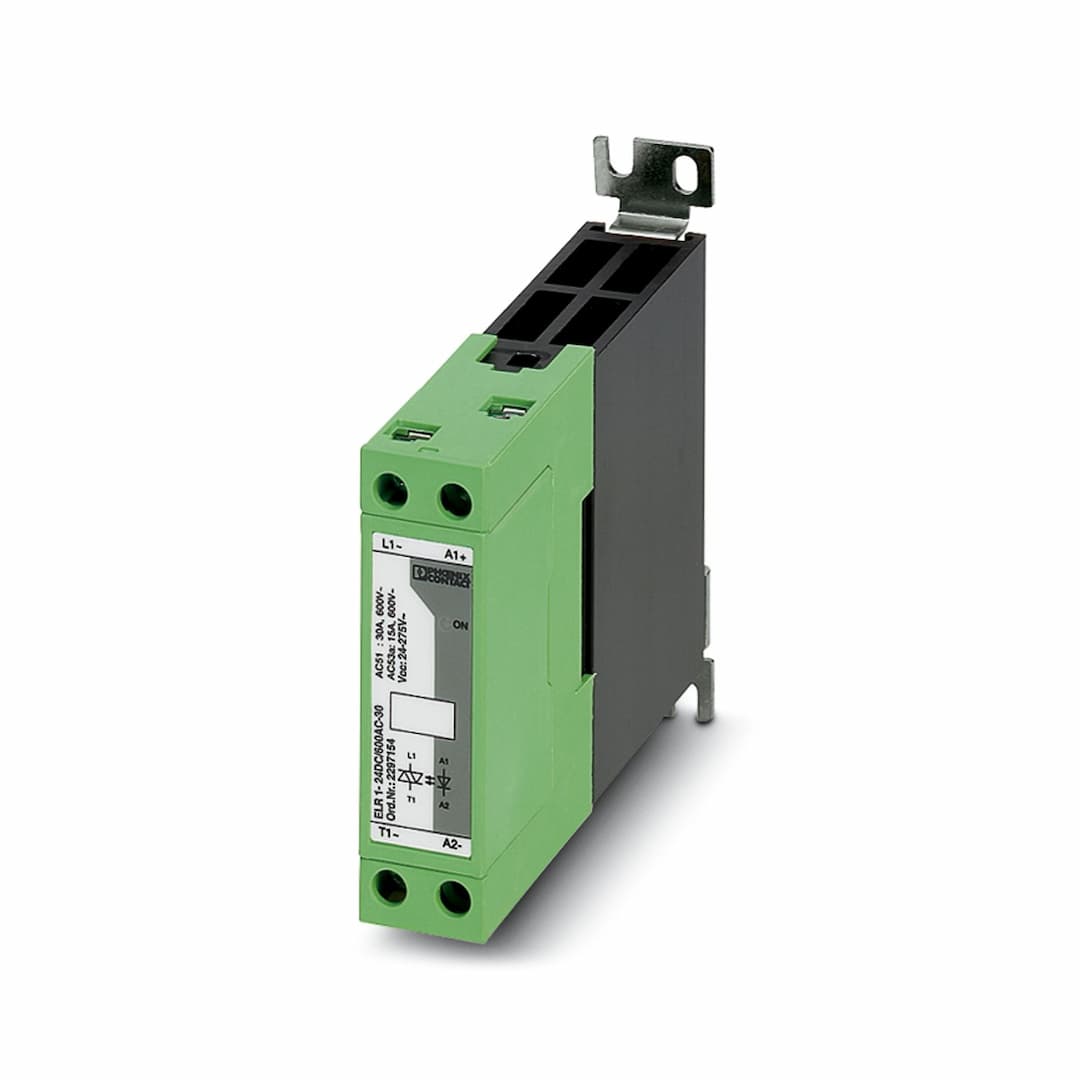

ELR 1- 24DC/600AC-30
Selling Points
- 1High switching frequency for efficient operation.
- 2Wear and bounce-free design for reliable performance.
- 3Compatible with 24 V DC and 230 V AC input voltages.
- 4Wide operating voltage range from 42 V AC to 660 V AC.
- 5UL Recognized and cUL Recognized for safety compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Number of phases | 1 |
Maximum power dissipation for nominal condition | 48 W | Mains type | 1-phase |
Test voltage (Input/output) | 4 kV | Input name | Control input |
Rated actuating voltage U | 24 V DC | Triggering voltage range | 4 V DC ... 32 V DC |
Rated actuating current I | approx. 12 mA | Switching threshold | ≤ 1 V DC (“0” signal)
≥ 4 V DC (“1” signal) |
Operating voltage display | Green LED | Transmission frequency | 25 Hz |
Operating voltage range | 42 V AC ... 660 V AC | Rated operating current at AC-51 | 30 A |
Rated operating current at AC-53a | 15 A | Peak offstate voltage | 1200 V |
Mains frequency | 45 Hz
65 Hz | Load current range | 150 mA ... 30 A (see to derating) |
Leakage current | < 3 mA (In off state) | Residual voltage | < 1.6 V |
Surge current | 400 A (t = 10 ms) | Max. load value | 1800 A |
Protective circuit | RCV circuit | Phase angle cos phi min | 0.5 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M4 | Conductor cross section rigid | 0.5 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.5 mm² ... 2.5 mm² | Conductor cross section AWG | 20 ... 14 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M4 | Conductor cross section rigid | 0.5 mm² ... 4 mm² |
Conductor cross section flexible | 0.5 mm² ... 4 mm² | Conductor cross section AWG | 20 ... 12 |
Operating voltage display | Green LED | Width | 22.5 mm |
Height | 103 mm | Depth | 103 mm |
Color | green (RAL 6021) | Ambient temperature (operation) | -30 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Standards/regulations | EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 55011 |
Mounting type | DIN rail mounting | Assembly note | Can be aligned with ≥ 22.5 mm spacing |
Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
