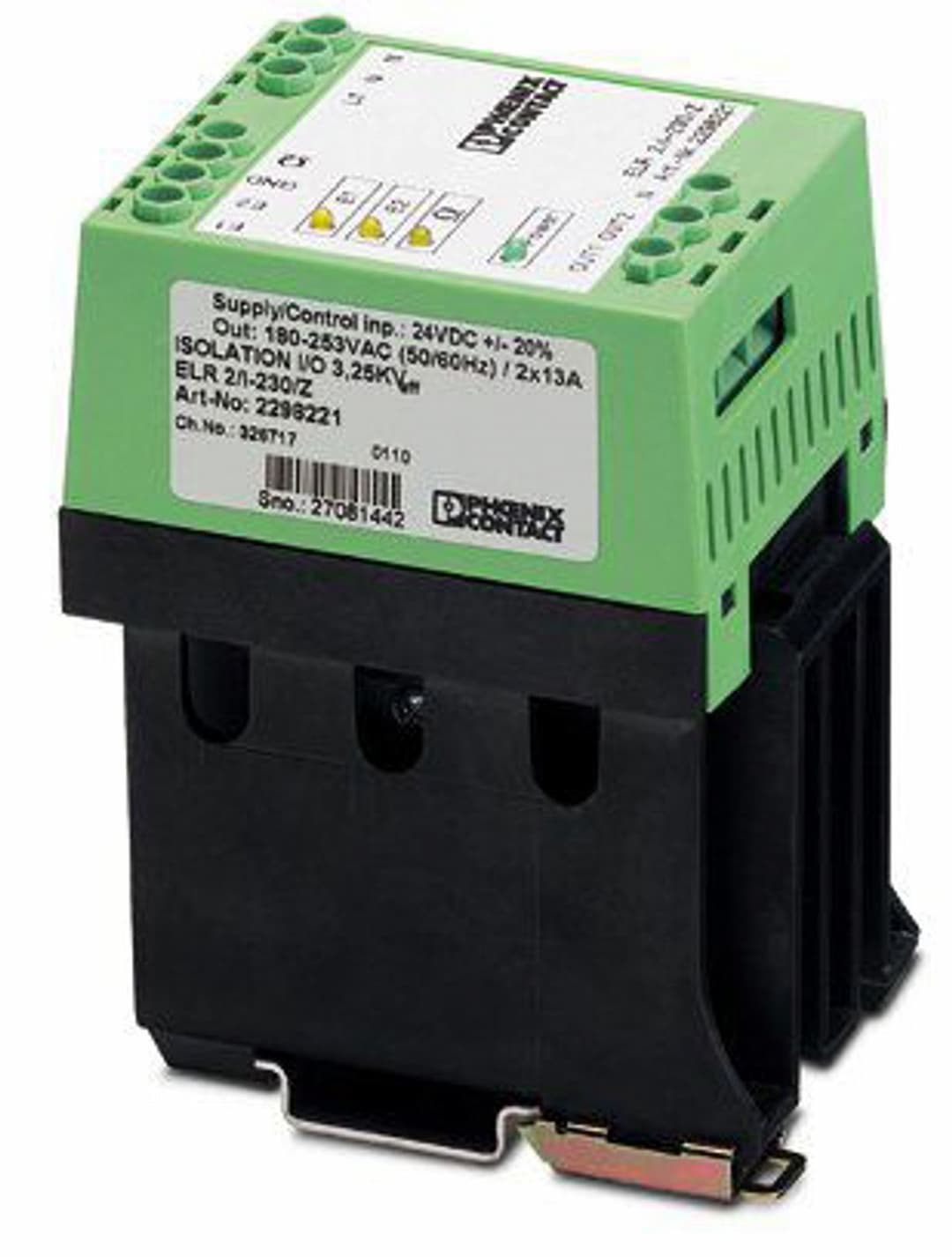

Product Model
ELR 2/I-230/Z
Selling Points
- 1Intelligent control of ohmic and inductive loads.
- 2Robust surge protection with a surge current of 200 A (tp = 10 ms).
- 3High reliability with a leakage current of typically 6.5 mA.
- 4Compact dimensions: 62 mm width, 84 mm height, 110 mm depth.
- 5Compatible with ambient temperatures from -25 °C to 40 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Operating mode | 100% operating factor |
Overvoltage category | III | Pollution degree | 2 |
Number of phases | 1 | Mains type | 1-phase |
Test voltage (Input/output) | 4 kV AC (50 Hz, 60 s) | Input name | Device supply |
Nominal supply voltage | 24 V DC | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Suppressor diode |
Operating voltage display | Yellow LED | Nominal output voltage range | 180 V AC ... 275 V AC |
Peak offstate voltage | 600 V | Mains frequency | 50 Hz
60 Hz |
Continuous load current | 2x 13 A (see derating curve) | Load current range | 75 mA |
Leakage current | typ. 6.5 mA | Residual voltage | 1.5 V |
Surge current | 200 A (tp = 10 ms) | Max. load value | 220 A |
Protective circuit | RC element
Varistor | Surge voltage protection | 275 V AC |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Width | 62 mm | Height | 84 mm |
Depth | 110 mm | Color | green (RAL 6021) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 40 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C | Standards/regulations | EN 50178 |
Assembly note | Can be aligned with spacing = 20 mm | Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
