Product Model

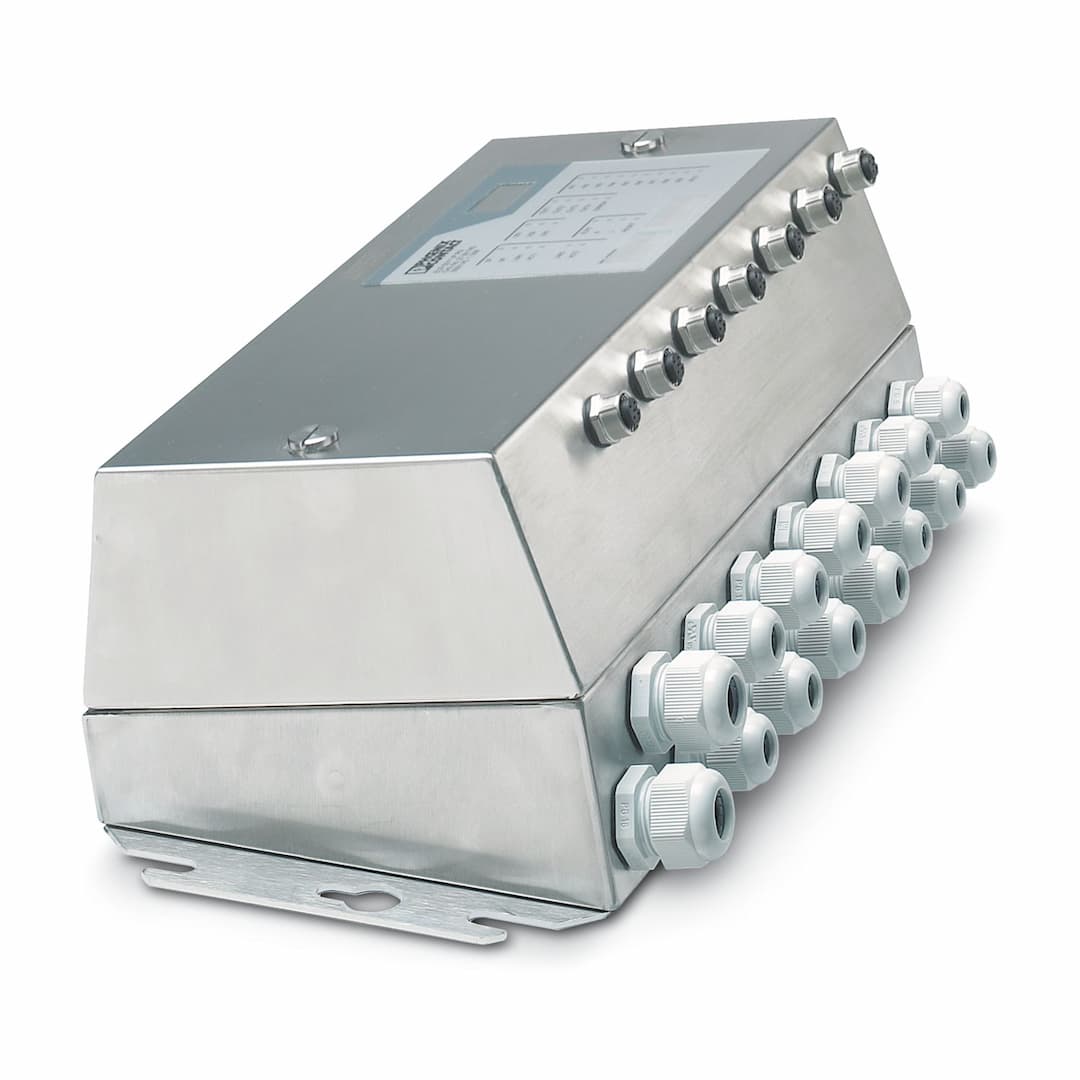

ELR 5011-2 IP PN
Selling Points
- 1The ELR 5011-2 IP PN motor starter is designed for efficient automation, ensuring reliable operation in various industrial settings.
- 2Equipped with a 2-channel reversing starter, this product allows for easy control and management of motor operations.
- 3The electronics module is designed without the lower part of the housing, providing a compact and streamlined solution.
- 4Built with high-quality components, the ELR 5011-2 IP PN motor starter offers exceptional reliability and durability.
- 5Meets international standards such as DIN EN 50178 and EN 60947, ensuring compliance with regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Stand-Alone | Mounting position | vertical |
Type | Electronic motor starter | Connection method | COMBICON |
Designation | Terminal strip X13 | Number of positions | 3 |
Permissible conductor cross section | 1.5 mm² | Pg screw connection | Pg11 |
Supply voltage | 24 V DC (U | Supply voltage range | 20 V DC ... 30 V DC (including ripple) |
Supply current | typ. 0.25 A (at U | Ripple | Permissible ripple 3.6 V |
Max. current carrying capacity | 10 A | Number of inputs | 10 |
Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
Number of positions | 5 | Input voltage | 24 V DC (U |
Input voltage range "0" signal | -3 V DC ... 5 V (binary "0") | Input voltage range "1" signal | 15 V DC ... 30 V DC (binary "1") |
Filter time | 3 ms | Typical input current per channel | approx. 3 mA (for U |
No. of channels | 2 | Connection method | 8-pos. RJ45 socket on motor starter |
Designation connection point | X30 and X31 | Number of positions | 8 |
Permissible conductor cross section | max. 0.14 mm² ... 0.22 mm² | Width | 384 mm |
Height | 182 mm | Depth | 139 mm |
Drill hole spacing | 360 mm | Note on dimensions | Module electronics without lower part |
Drill hole spacing | 360 mm | Degree of protection | IP67 in acc. with IEC 60529 |
Ambient temperature (operation) | -25 °C ... 50 °C (non-condensing) | Note | Notes on operation Line protection for the power cable, maximum 25 A. Observe derating of the POWER COMBICON connector
Notes on operation Permitted network type TN network, TT network, IT network available on request |
Air pressure (operation) | 86 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 86 kPa ... 106 kPa (up to 2000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 70 °C (non-condensing) | Permissible humidity (operation) | 0 % ... 85 % (non-condensing) |
Permissible humidity (storage/transport) | 75 % (slight temporary condensation may sometimes appear on the housing) | Protection class | I (EN 50178) |
Noise emission | EN 61000-6-4 | Air clearances and creepage distances | in accordance with EN 50178: 1998 |
Mounting type | Wall mounting | Mounting position | vertical |
Specifications may be subject to change without notice
