Product Model

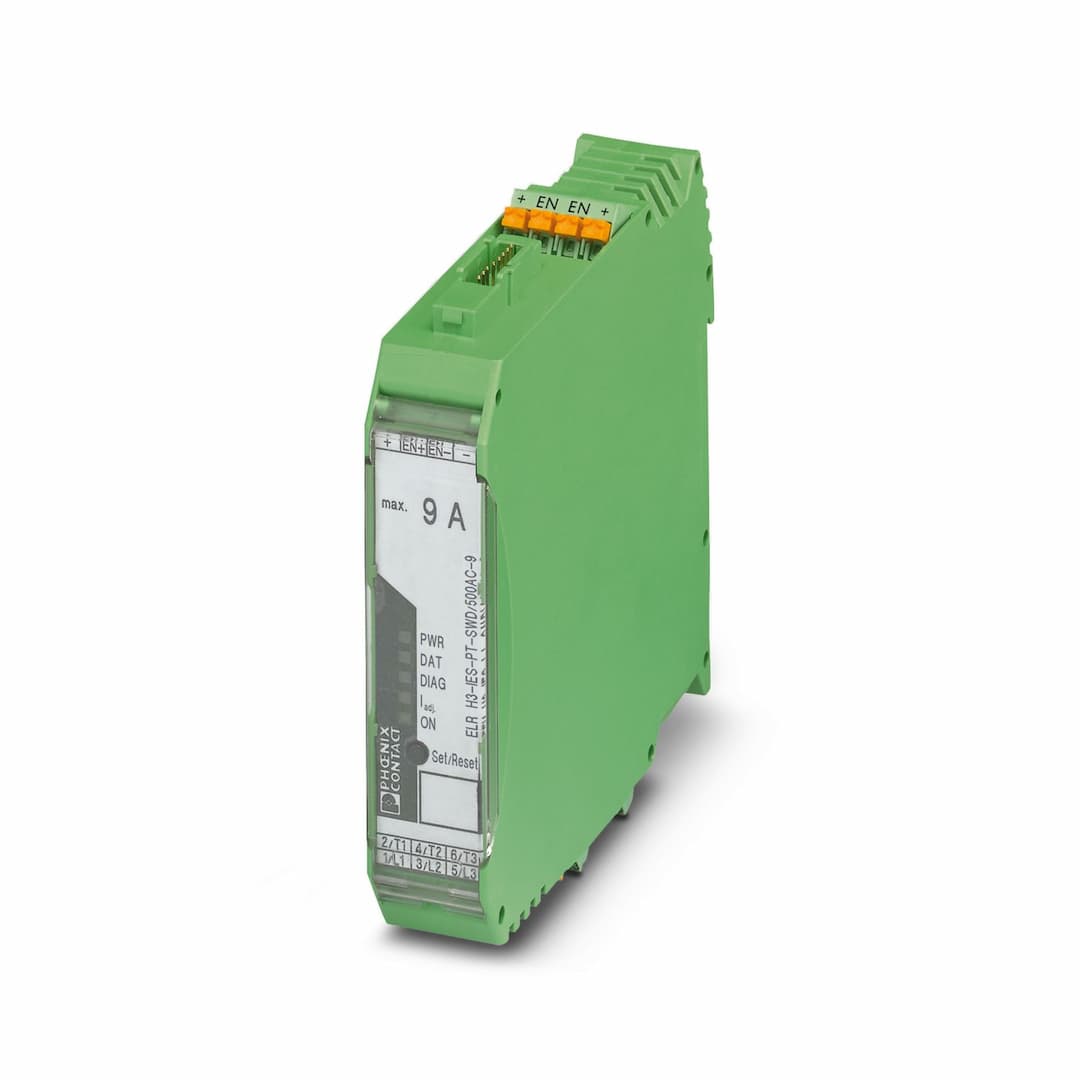

ELR H3-IES-PT-SWD/500AC-9
Selling Points
- 1Hybrid Motor Starter for 3-phase AC motors up to 500V AC with 9A output current.
- 2Adjustable overload shutdown and emergency stop function for enhanced safety.
- 3Meets SIL 3/PL e safety standards for high reliability and protection.
- 4Push-in connection simplifies installation and reduces wiring complexity.
- 5Compact design with dimensions 22.5mm x 99mm x 114.5mm, suitable for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Hybrid motor starters | Operating mode | 100% operating factor |
Number of phases | 3 | Switching frequency | ≤ 2 Hz (Load-dependent) |
Maximum power dissipation for nominal condition | 13.5 W | Switching frequency | ≤ 2 Hz (Load-dependent) |
Maximum power dissipation | 7 W | Minimum power dissipation | 0.88 W |
Coordination type | 1 | Rated control circuit supply voltage U | 24 V DC |
Control supply voltage range | 19.2 V DC ... 30 V DC | Rated control supply current I | 60 mA |
Protective circuit | Surge protection
Reverse polarity protection; Parallel polarity protection diode | Rated insulation voltage | 550 V |
Rated surge voltage | 6 kV | Overvoltage category | III |
Degree of pollution | 2 | Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit | Safe isolation (IEC 60947-1) |
Isolation characteristics between the control input and control supply voltage to auxiliary circuit | Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC | Operate threshold | > 60 A |
Response time | < 0.5 s | Input name | Enable input |
Rated actuating voltage U | 24 V DC | Triggering voltage range | 19.2 V DC ... 30 V DC |
Rated actuating current I | 7 mA | Switching threshold | 9.6 V (“0” signal)
19.2 V (“1” signal) |
Switching level | < 5 V DC (For EMERGENCY STOP) | Typical turn-off time | < 30 ms |
Rated operating voltage U | 500 V AC | Operating voltage range | 42 V AC ... 550 V AC |
Rated operating current I | 9 A (AC-51)
7 A (AC-53a) | Mains frequency | 50/60 Hz |
Load current range | 1.5 A ... 9 A (see to derating) | Trigger characteristic in acc. with IEC 60947-4-2 | Class 10A |
Cooling time | 20 min (for auto reset) | Leakage current | 0 mA |
Protective circuit | Surge protection; Varistor | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Status display | LED (yellow) |
Operating voltage display | Green LED | Error indication | Red LED |
Width | 22.5 mm | Height | 107.5 mm |
Depth | 114 mm | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -5 °C ... 55 °C (observe derating) |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Identification | II (2) G [Ex eb] [Ex db] [Ex pxb]
II (2) D [Ex tb] [Ex pb] |
Certificate | PTB 15 ATEX 3001 | Certificate | NLDX.E228652
NRNT.E172140 |
Identification | ≤ 3 | Note | Safe shutdown |
Identification | 2 | Note | Motor protection |
Identification | e | Note | Safe shutdown |
Identification | ≤ 3 | Note | Safe shutdown |
SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) | FLA | 7.6 A (480 V AC) |
Group installation | 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded)
30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded) | Category code | NLDX / NRNT |
Horsepower ratings | 2 hp (120 V AC / 208 V AC)
5 hp (277 V AC / 480 V AC) | Standards/regulations | IEC 60947-1
EN 60947-4-2
IEC 61508
ISO 13849 |
Mounting type | DIN rail mounting | Assembly note | alignable, for spacing see derating |
Mounting position | vertical (horizontal DIN rail, motor output below) |
Specifications may be subject to change without notice
