Product Model

ELR H3-I-PT- 24DC/500AC-0,6

In Stock
Last updated: 2025/4/17
Phoenix Contact ELR H3-I-PT- 24DC/500AC-0,6

Selling Points

  • 1Efficient Motor Control: The ELR H3-I-PT- 24DC/500AC-0.6 offers precise control for AC motors up to 500V AC with a 0.6A output current.
  • 2Current Monitoring: Equipped with current monitoring for enhanced safety and performance.
  • 3Adjustable Overload Shutdown: Provides adjustable overload shutdown for customizable protection.
  • 424V DC Control Voltage: Operates on a reliable 24V DC control voltage.
  • 5Push-in Connection: Features push-in connections for easy and secure wiring installation.
Product Details

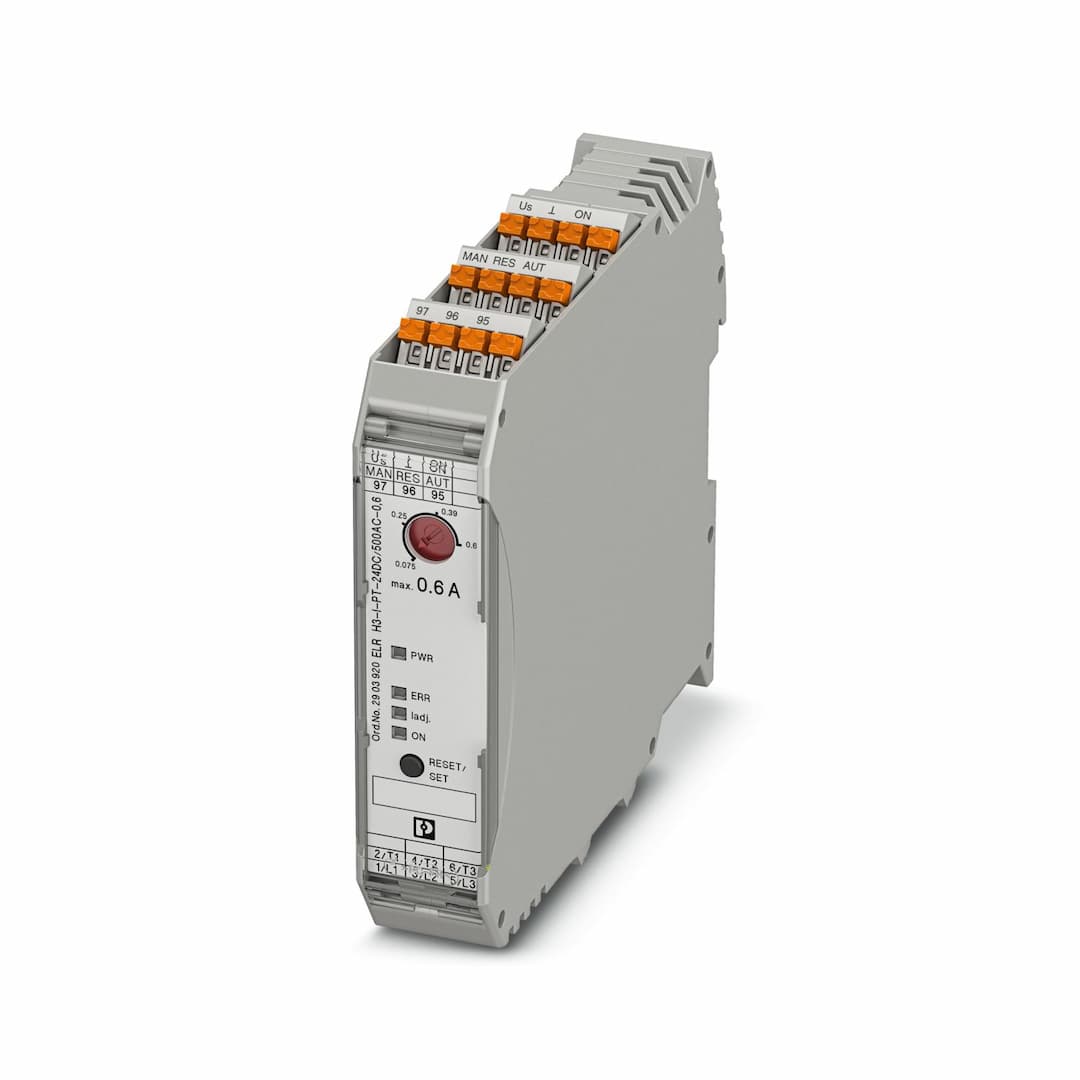

ELR H3-I-PT- 24DC/500AC-0,6
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Hybrid motor starters
Product family
CONTACTRON
Operating mode
100% operating factor
Article revision
06
Number of phases
3
Motor starter type
Direct starter
Switching frequency
≤ 2 Hz (Load-dependent)
Maximum power dissipation for nominal condition
0.4 W
Switching frequency
≤ 2 Hz (Load-dependent)
Maximum power dissipation
1.5 W
Minimum power dissipation
1.1 W
Coordination type
1
Rated control circuit supply voltage U
24 V DC
Control supply voltage range
19.2 V DC ... 30 V DC
Rated control supply current I
40 mA
Protective circuit
Surge protection Reverse polarity protection
Rated insulation voltage
500 V
Rated surge voltage
6 kV
Overvoltage category
III
Degree of pollution
2
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit
Safe isolation (IEC 60947-1) at operating voltage ≤ 300 V AC (e.g., 230/400 V AC, 277/480 V AC) Basic insulation (IEC 60947-1) at operating voltage 300 V AC ... 500 V AC
Isolation characteristics between the control input and control supply voltage to auxiliary circuit
Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Input name
Control input
Rated actuating voltage U
24 V DC
Triggering voltage range
19.2 V DC ... 30 V DC
Rated actuating current I
5 mA (Input type 1)
Switching threshold
9.6 V (“0” signal) 19.2 V (“1” signal)
Typical turn-off time
< 30 ms
Protective circuit
Reverse polarity protection
Rated operating voltage U
500 V AC
Operating voltage range
42 V AC ... 550 V AC
Rated operating current I
0.6 A (AC-51) 0.6 A (AC-53a)
Mains frequency
50/60 Hz
Load current range
75 mA ... 600 mA (see to derating)
Trigger characteristic in acc. with IEC 60947-4-2
Class 10A
Cooling time
20 min (for auto reset)
Leakage current
0 mA
Protective circuit
Surge protection
Note
Confirmation: floating change-over contact, signal contact
Contact switching type
1 changeover contact
Switching capacity in accordance with IEC 60947-5-1
3 A (230 V, AC15) 2 A (24 V, DC13)
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 14
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 14
Status display
LED (yellow)
Operating voltage display
Green LED
Error indication
Red LED
Width
22.5 mm
Height
107.5 mm
Depth
114 mm
Flammability rating according to UL 94
V0 (Housing)
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)
-40 °C ... 80 °C
Altitude
≤ 2000 m
Certificate
UKCA-compliant
Certificate
NLDX.E228652
SCCR
100 kA (500 V AC (fuse: 30 A class CC/30 A class J (high fault))) 5 kA (500 V AC (fuse: 20 A RK5 (standard fault)))
FLA
0.6 A (500 V AC)
Group installation
20 A (class RK5, SCCR 5kA, #24 - 14 AWG max. solid and stranded) 30 A (class CC or J, SCCR 100kA, #24 - 14 AWG max, solid and stranded)
Category code
NLDX / NRNT
Standards/regulations
IEC 60947-1 IEC 60947-4-2
Mounting type
DIN rail mounting
Assembly note
alignable, for spacing see derating
Mounting position
vertical (horizontal DIN rail, motor output below)
