Product Model

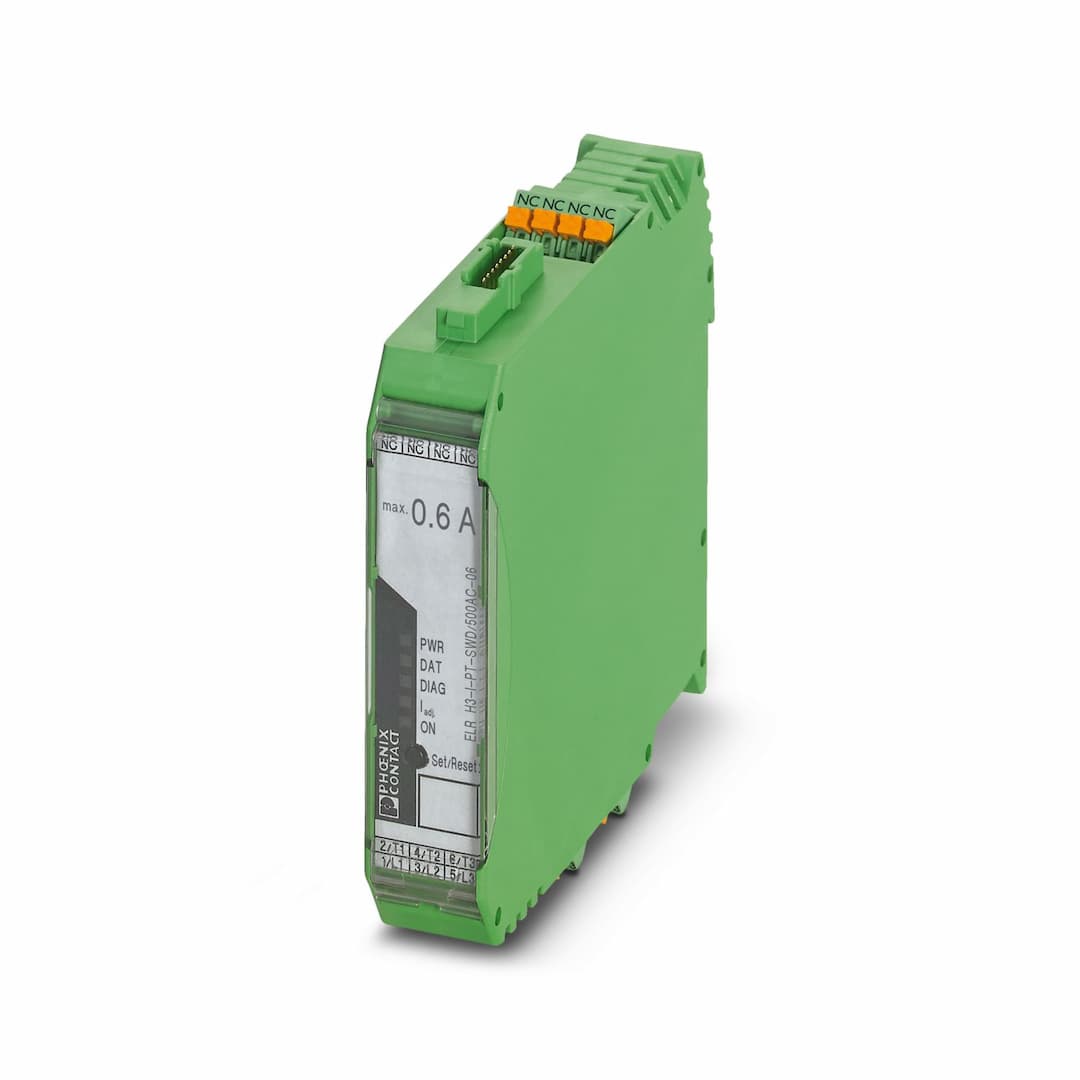

ELR H3-I-PT-SWD/500AC-06
Selling Points
- 1Efficient Motor Control: Starts 3-phase AC motors up to 500 V AC with 0.6 A output current.
- 2Smart Wiring Integration: Compatible with SmartWire-DT system for reduced wiring and space-saving design.
- 3Adjustable Overload Shutdown: Ensures safe operation with adjustable overload shutdown for customizable protection.
- 4Push-in Connections: Simplifies installation with push-in connections for solid and flexible conductors.
- 5High Reliability: Equipped with surge protection and reverse polarity protection for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Hybrid motor starters | Operating mode | 100% operating factor |
Article revision | 04 | Number of phases | 3 |
Switching frequency | ≤ 2 Hz (Load-dependent) | Maximum power dissipation for nominal condition | 0.5 W |
Switching frequency | ≤ 2 Hz (Load-dependent) | Maximum power dissipation | 2.5 W |
Minimum power dissipation | 0.88 W | Coordination type | 1 |
Rated control circuit supply voltage U | 24 V DC | Control supply voltage range | 19.2 V DC ... 30 V DC |
Rated control supply current I | 60 mA | Protective circuit | Surge protection
Reverse polarity protection; Parallel polarity protection diode |
Rated insulation voltage | 550 V | Rated surge voltage | 6 kV |
Overvoltage category | III | Degree of pollution | 2 |
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit | Safe isolation (IEC 60947-1) | Isolation characteristics between the control input and control supply voltage to auxiliary circuit | Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC |
Operate threshold | > 10 A | Response time | < 0.5 s |
Rated operating voltage U | 500 V AC | Operating voltage range | 42 V AC ... 550 V AC |
Rated operating current I | 0.6 A (AC-51)
0.6 A (AC-53a) | Mains frequency | 50/60 Hz |
Load current range | 75 mA ... 600 mA (see to derating) | Trigger characteristic in acc. with IEC 60947-4-2 | Class 10 |
Cooling time | 20 min (for auto reset) | Leakage current | 0 mA |
Protective circuit | Surge protection; Varistor | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Status display | LED (yellow) |
Operating voltage display | Green LED | Error indication | Red LED |
Width | 22.5 mm | Height | 107.5 mm |
Depth | 114 mm | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -5 °C ... 55 °C (observe derating) |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Altitude | ≤ 2000 m |
Certificate | NLDX.E228652
NRNT.E172140 | SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) |
FLA | 0.6 A (480 V AC) | Group installation | 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded)
30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded) |
Category code | NLDX / NRNT | Horsepower ratings | - |
Standards/regulations | IEC 60947-1
EN 60947-4-2 | Mounting type | DIN rail mounting |
Assembly note | alignable, for spacing see derating | Mounting position | vertical (horizontal DIN rail, motor output below) |
