Product Model

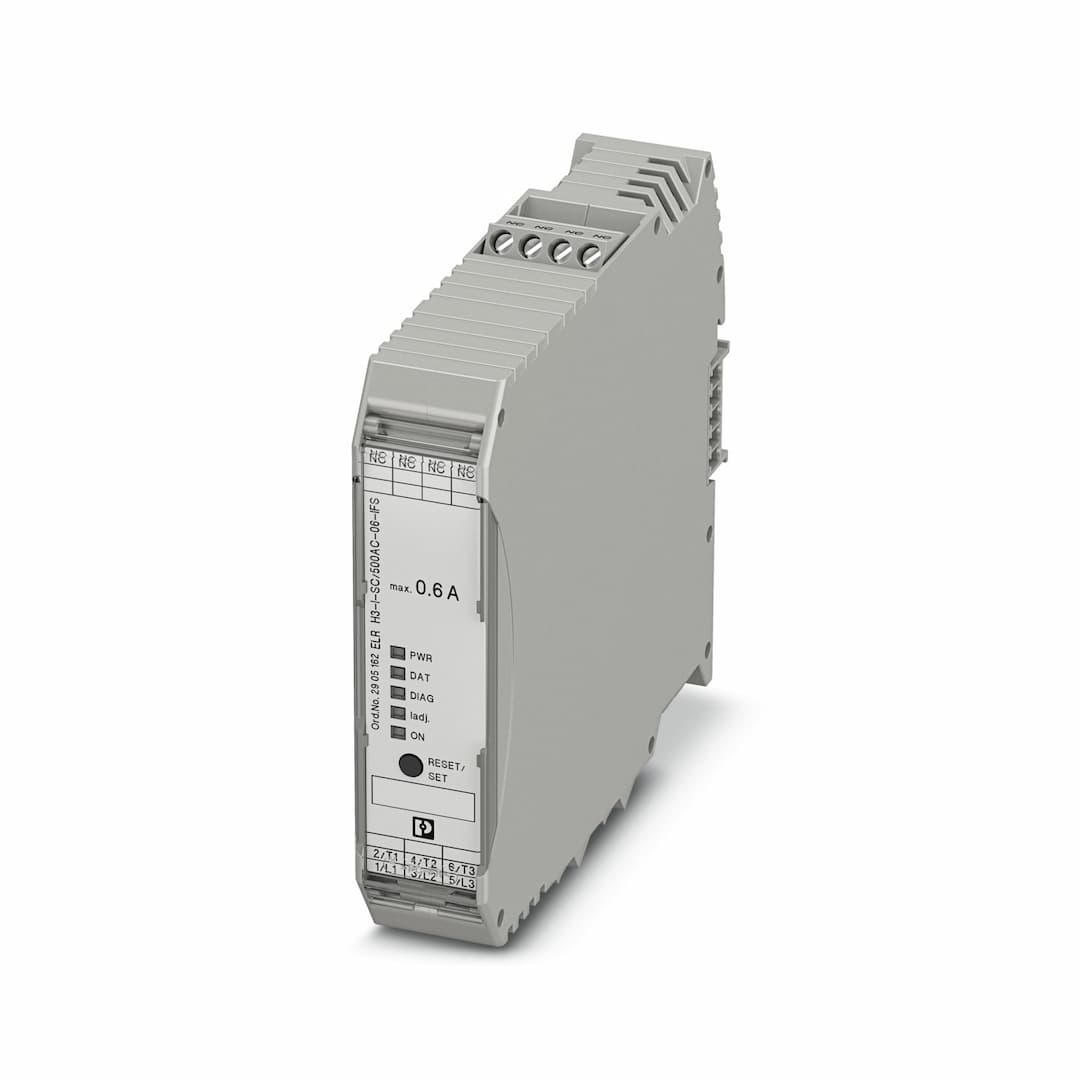

ELR H3-I-SC/500AC-06-IFS
Selling Points
- 1Connects to higher-level controllers via EtherNet/IP for seamless integration.
- 2Ensures safe operation by adjusting shutdown thresholds based on load conditions.
- 3Easy and secure connection method for conductors up to 2.5 mm².
- 4Meets IEC 60947-1 standards with a safe isolation rating of ≤300 V AC.
- 5Dimensions: 22.5 mm width, 107 mm height, and 114 mm depth, making it ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Hybrid motor starters | Product family | CONTACTRON |
Operating mode | 100% operating factor | Article revision | 05 |
Number of phases | 3 | Motor starter type | Direct starter |
Switching frequency | ≤ 2 Hz (Load-dependent) | Maximum power dissipation for nominal condition | 0.5 W |
Switching frequency | ≤ 2 Hz (Load-dependent) | Maximum power dissipation | 2.5 W |
Minimum power dissipation | 0.88 W | Coordination type | 1 |
Rated control circuit supply voltage U | 24 V DC | Control supply voltage range | 19.2 V DC ... 30 V DC |
Rated control supply current I | 60 mA | Protective circuit | Surge protection
Reverse polarity protection; Parallel polarity protection diode |
Rated insulation voltage | 550 V | Rated surge voltage | 6 kV |
Overvoltage category | III | Degree of pollution | 2 |
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit | Safe isolation (IEC 60947-1) | Isolation characteristics between the control input and control supply voltage to auxiliary circuit | Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC |
Operate threshold | > 10 A | Response time | < 0.5 s |
Rated operating voltage U | 500 V AC | Operating voltage range | 42 V AC ... 550 V AC |
Rated operating current I | 0.6 A (AC-51)
0.6 A (AC-53a) | Mains frequency | 50/60 Hz |
Load current range | 75 mA ... 600 mA (see to derating) | Trigger characteristic in acc. with IEC 60947-4-2 | Class 10 |
Cooling time | 20 min (for auto reset) | Leakage current | 0 mA |
Protective circuit | Surge protection; Varistor | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb | Status display | LED (yellow) |
Operating voltage display | Green LED | Error indication | Red LED |
Width | 22.5 mm | Height | 107 mm |
Depth | 114 mm | Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection | IP20 | Ambient temperature (operation) | -5 °C ... 60 °C (observe derating) |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Altitude | ≤ 2000 m |
Certificate | NLDX.E228652
NRNT.E172140 | SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) |
FLA | 0.6 A (480 V AC) | Group installation | 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded)
30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded) |
Category code | NLDX / NRNT | Standards/regulations | IEC 60947-1
EN 60947-4-2 |
Mounting type | DIN rail mounting | Assembly note | alignable, for spacing see derating |
Mounting position | vertical (horizontal DIN rail, motor output below) |
Specifications may be subject to change without notice
