Product Model

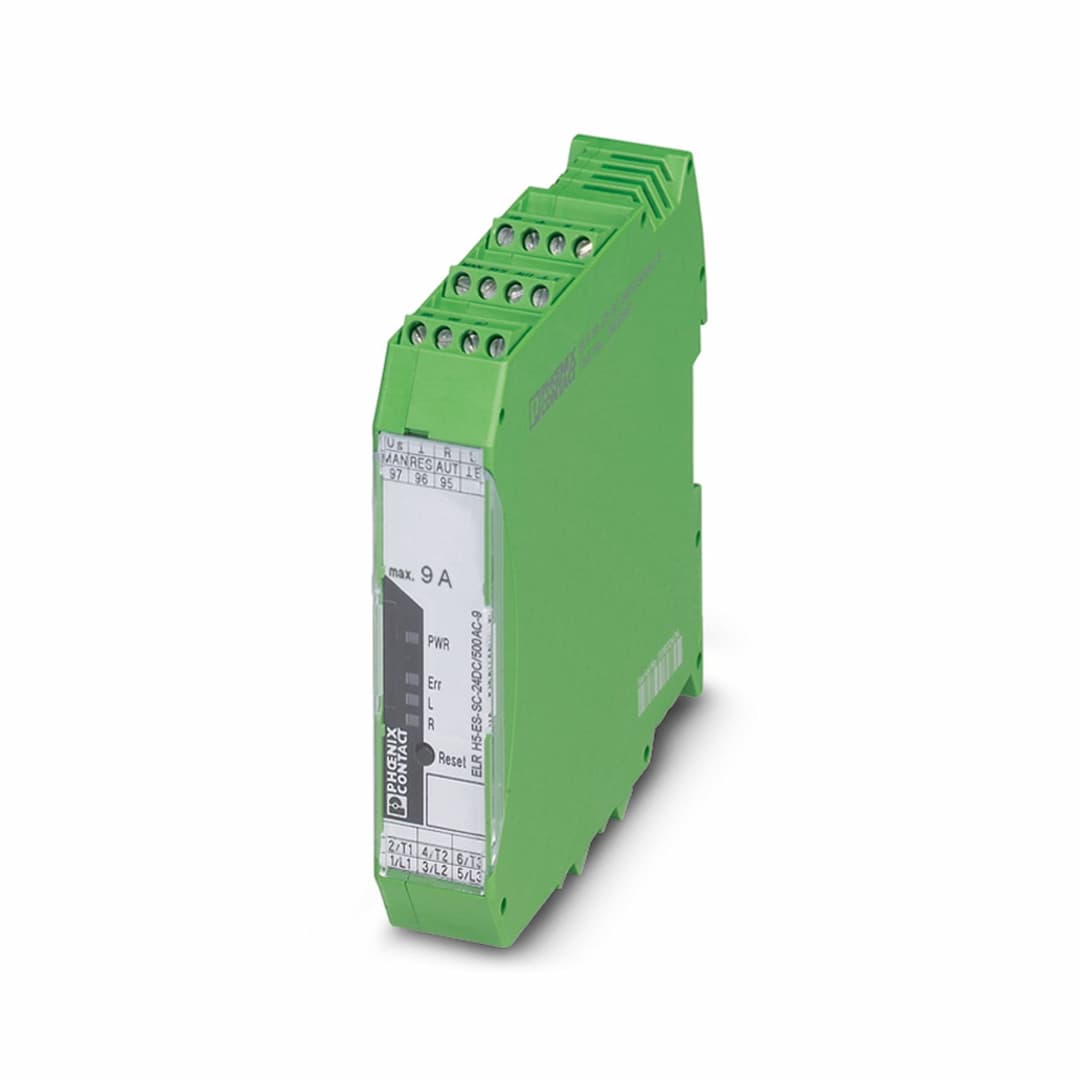

ELR H5-ES-SC-230AC/500AC-9
Selling Points
- 1Wide Safety Level: Meets IEC 61508-1: SIL 3 and ISO 13849: PL e safety standards.
- 2Space-Saving Design: Compact 22.5 mm width for reduced wiring and space requirements.
- 3Long Service Life: Designed for long-term operation with low-wear switching.
- 4Adjustable Overload Shutdown: Allows for customizable protection settings.
- 5Emergency Stop Function: Ensures immediate shutdown in emergency situations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Hybrid motor starters | Product family | CONTACTRON |
Operating mode | 100% operating factor | Insulation | safe isolation |
Number of phases | 3 | Service life electrical | 3x 10 |
Reversing frequency | ≤ 2 Hz | Maximum power dissipation | 16.1 W |
Minimum power dissipation | 2.6 W | Coordination type | 1 |
Rated insulation voltage | 500 V | Rated surge voltage | 6 kV |
Rated control circuit supply voltage U | 230 V AC | Control supply voltage range | 92 V AC ... 253 V AC |
Rated control supply current I | 4 mA | Mains frequency | 50/60 Hz |
Protective circuit | Surge protection | Operate threshold | > 45 A |
Response time | < 2 s | Rated actuating voltage U | 230 V AC |
Triggering voltage range | 92 V AC ... 253 V AC | Mains frequency | 50 Hz 60 Hz 50/60 Hz |
Switching threshold | 44 V AC (“0” signal)
85 V AC (“1” signal) | Switching level | < 5 V AC (For EMERGENCY STOP) |
Typical turn-off time | < 70 ms | Rated operating voltage U | 500 V AC |
Operating voltage range | 42 V AC ... 550 V AC | Rated operating current I | 9 A (AC-51)
6.5 A (AC-53a) |
Mains frequency | 50/60 Hz | Load current range | 1.5 A ... 9 A (see to derating) |
Trigger characteristic in acc. with IEC 60947-4-2 | Class 10A | Cooling time | 20 min (for auto reset) |
Leakage current | 0 mA | Residual voltage | < 0.3 V |
Protective circuit | Surge protection | Note | Confirmation 01: floating changeover contact |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Status display | LED (yellow) | Operating voltage display | Green LED |
Error indication | Red LED | Width | 22.5 mm |
Height | 107 mm | Depth | 114 mm |
Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Identification | ≤ 3 | Note | Safe shutdown |
Identification | e | Note | Safe shutdown |
Identification | ≤ 3 | Note | Safe shutdown |
SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) | FLA | 6.5 A (480 V) |
Standards/regulations | DIN EN 50178
EN 60947 | Standards/regulations | DWR 1300/ZXX01/DD/7080.8d |
Standards/regulations | DIN EN 50178 | Assembly note | Can be aligned with spacing = 20 mm |
Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
