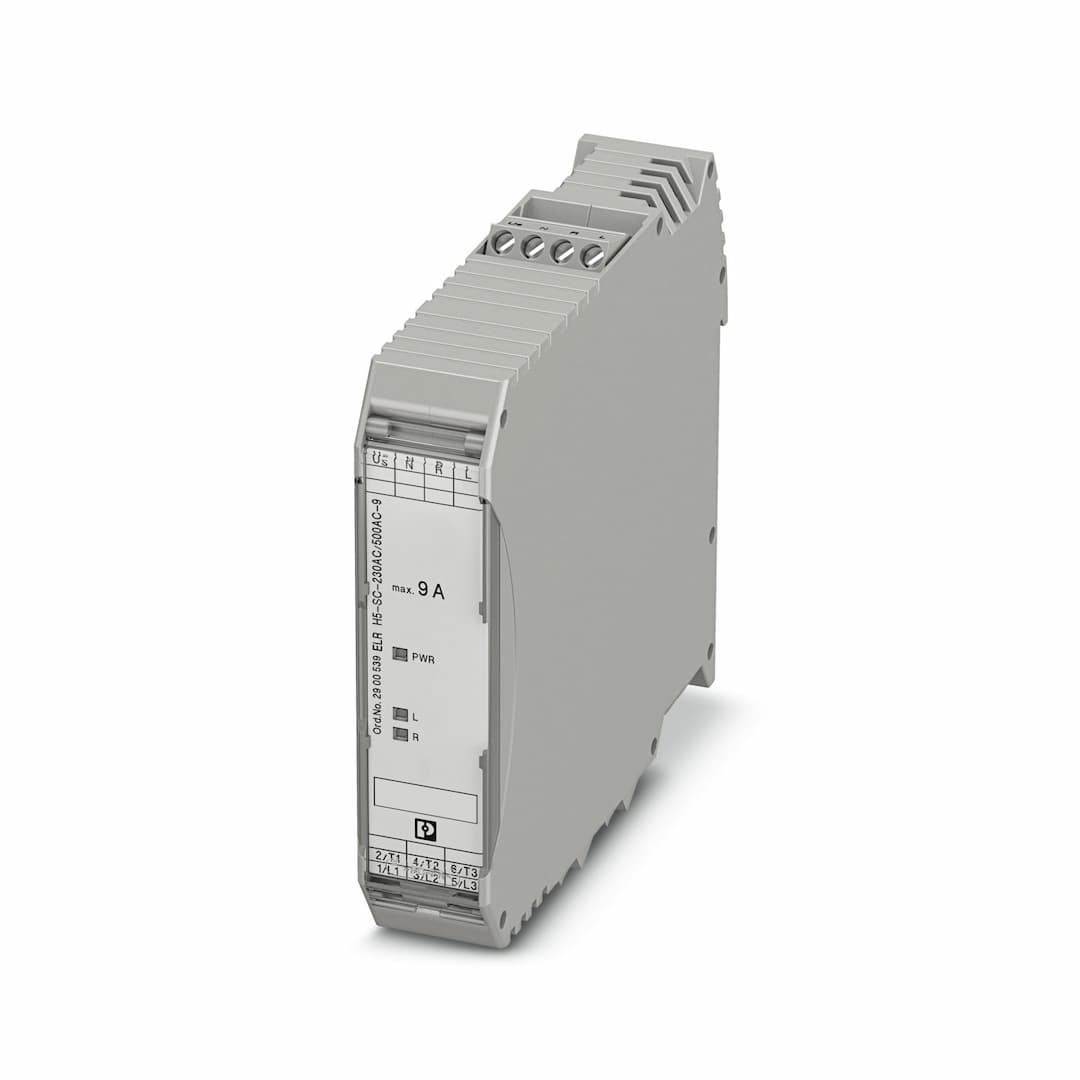

Hybrid Motor Starter ELR H5-SC-230AC/500AC-9 - High Performance and Safety

Selling Points

1High Performance: Designed for reversing 3~ AC motors up to 500 V AC with 9 A output current.
2Safety Features: Includes adjustable overload shutdown and emergency stop function to SIL 3/PL e standards.
3Space-Saving Design: Compact dimensions of 22.5 mm wide, 107 mm high, and 114 mm deep.
4Long Service Life: Built with low-wear switching technology for extended operational life.
5Surge Protection: Equipped with surge protection to ensure reliable operation in various environments.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Hybrid motor starters	Product family	CONTACTRON
Operating mode	100% operating factor	Article revision	06
Number of phases	3	Motor starter type	Reversing starter
Switching frequency	≤ 2 Hz (Load-dependent)	Maximum power dissipation for nominal condition	13.5 W
Switching frequency	≤ 2 Hz (Load-dependent)	Maximum power dissipation	16.1 W
Minimum power dissipation	2.6 W	Coordination type	1
Rated control circuit supply voltage U	230 V AC	Control supply voltage range	85 V AC ... 253 V AC
Rated control supply current I	4 mA	Mains frequency	50/60 Hz
Protective circuit	Surge protection	Rated insulation voltage	500 V
Rated surge voltage	4 kV	Overvoltage category	III
Degree of pollution	2	Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit	Safe isolation (IEC 60947-1/EN 50178) at operating voltage ≤ 300 V AC Basic insulation (IEC 60947-1) at operating voltage 300 V AC ... 500 V AC Safe isolation (EN 50178) at operating voltage 300 ... 500 V AC
Isolation characteristics between the control input and control supply voltage to auxiliary circuit	Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC	Input name	Control input right/left
Rated actuating voltage U	230 V AC	Triggering voltage range	85 V AC ... 253 V AC
Rated actuating current I	7 mA (Input type 1)	Mains frequency	50 Hz 60 Hz 50/60 Hz
Switching threshold	44 V AC (“0” signal) 85 V AC (“1” signal)	Typical turn-off time	< 70 ms
Rated operating voltage U	500 V AC	Operating voltage range	42 V AC ... 550 V AC
Rated operating current I	9 A (AC-51) 6.5 A (AC-53a)	Mains frequency	50/60 Hz
Load current range	0 A ... 9 A (see to derating)	Trigger characteristic in acc. with IEC 60947-4-2	-
Leakage current	0 mA	Protective circuit	Surge protection
Connection method	Screw connection	Stripping length	8 mm
Screw thread	M3	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm 5 lb	Connection method	Screw connection
Stripping length	8 mm	Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14	Tightening torque	0.5 Nm ... 0.6 Nm 5 lb
Status display	LED (yellow)	Operating voltage display	Green LED
Width	22.5 mm	Height	107 mm
Depth	114 mm	Flammability rating according to UL 94	V0 (Housing)
Degree of protection	IP20	Ambient temperature (operation)	-25 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 80 °C	Altitude	≤ 2000 m
Certificate	NLDX.E228652	SCCR	100 kA (500 V AC (fuse: 30 A class CC/30 A class J (high fault))) 5 kA (500 V AC (fuse: 20 A RK5 (standard fault)))
FLA	6.5 A (500 V AC)	Group installation	20 A (class RK5, SCCR 5kA, #24 - 14 AWG max. solid and stranded) 30 A (class CC or J, SCCR 100kA, #24 - 14 AWG max, solid and stranded)
Category code	NLDX / NRNT	Standards/regulations	IEC 60947-1 IEC 60947-4-2 IEC 61508 ISO 13849
Mounting type	DIN rail mounting	Assembly note	alignable, for spacing see derating
Mounting position	vertical (horizontal DIN rail, motor output below)

Specifications may be subject to change without notice
