Product Model

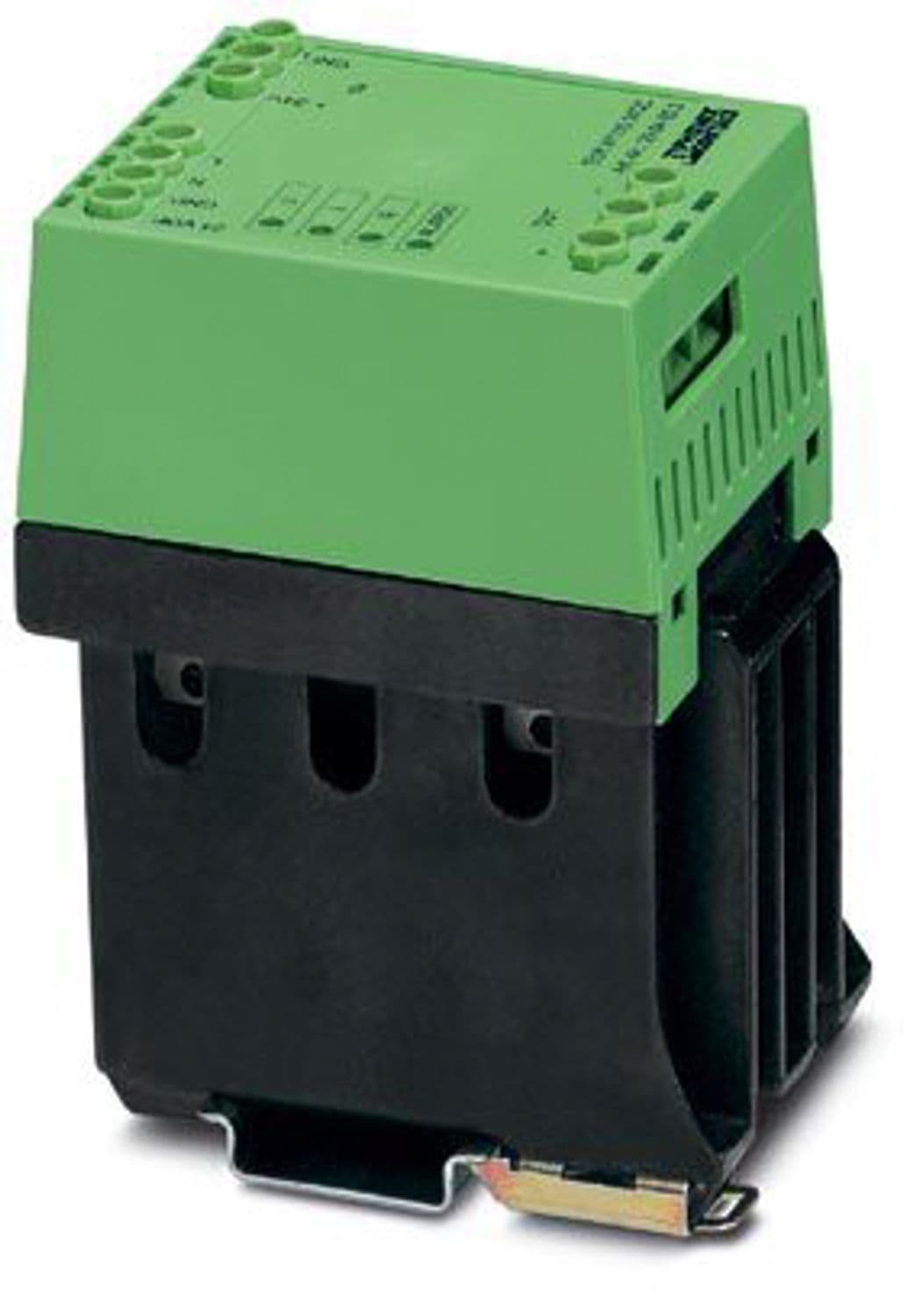

ELR W1/10-24DC
Selling Points
- 1Advanced Protection: Equipped with reverse polarity protection and a protective circuit to ensure safe operation.
- 2Versatile Output: Supports output voltage range of 10-30 V DC with a maximum current of 10 A.
- 3Compact Design: Compact dimensions (62 mm x 84 mm x 110 mm) for easy mounting on DIN rail.
- 4High Reliability: Meets EN 50178 standards and overvoltage category III for reliable performance.
- 5Easy Installation: Screw connection method with stripping length of 8 mm for straightforward setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Article revision | 09 |
Overvoltage category | III | Number of phases | 1 |
Maximum power dissipation for nominal condition | 0.36 W | Mains type | 1-phase |
Test voltage (Input/output) | 2.5 kV AC (50 Hz, 60 s) | Input name | Device supply |
Nominal supply voltage | 24 V DC ±20 % | Input voltage range | 19.2 V DC ... 28.8 V DC |
Current consumption | max. 10 mA | Rated control circuit supply voltage U | 24 V DC |
Control supply voltage range | 19.2 V DC ... 28.8 V DC | Protective circuit | Reverse polarity protection; Polarity protection diode |
Status display | LED (green) | Input name | Control input right/left |
Nominal input voltage U | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Input voltage range | 19.2 V DC ... 28.8 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
Current consumption | approx. 3 mA | Operating voltage range | 10 V DC ... 30 V DC |
Nominal output voltage range | 10 V DC ... 30 V DC | Continuous load current | 10 A |
Protective circuit | Reverse polarity protection
Overload protection
Surge protection
Overcurrent protection | Current limitation at short-circuits | 20 A |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Width | 62 mm | Height | 84 mm |
Depth | 110 mm | Color | green (RAL 6021) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | EN 50178 |
Mounting type | DIN rail mounting | Assembly note | Can be aligned with spacing = 20 mm |
Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
