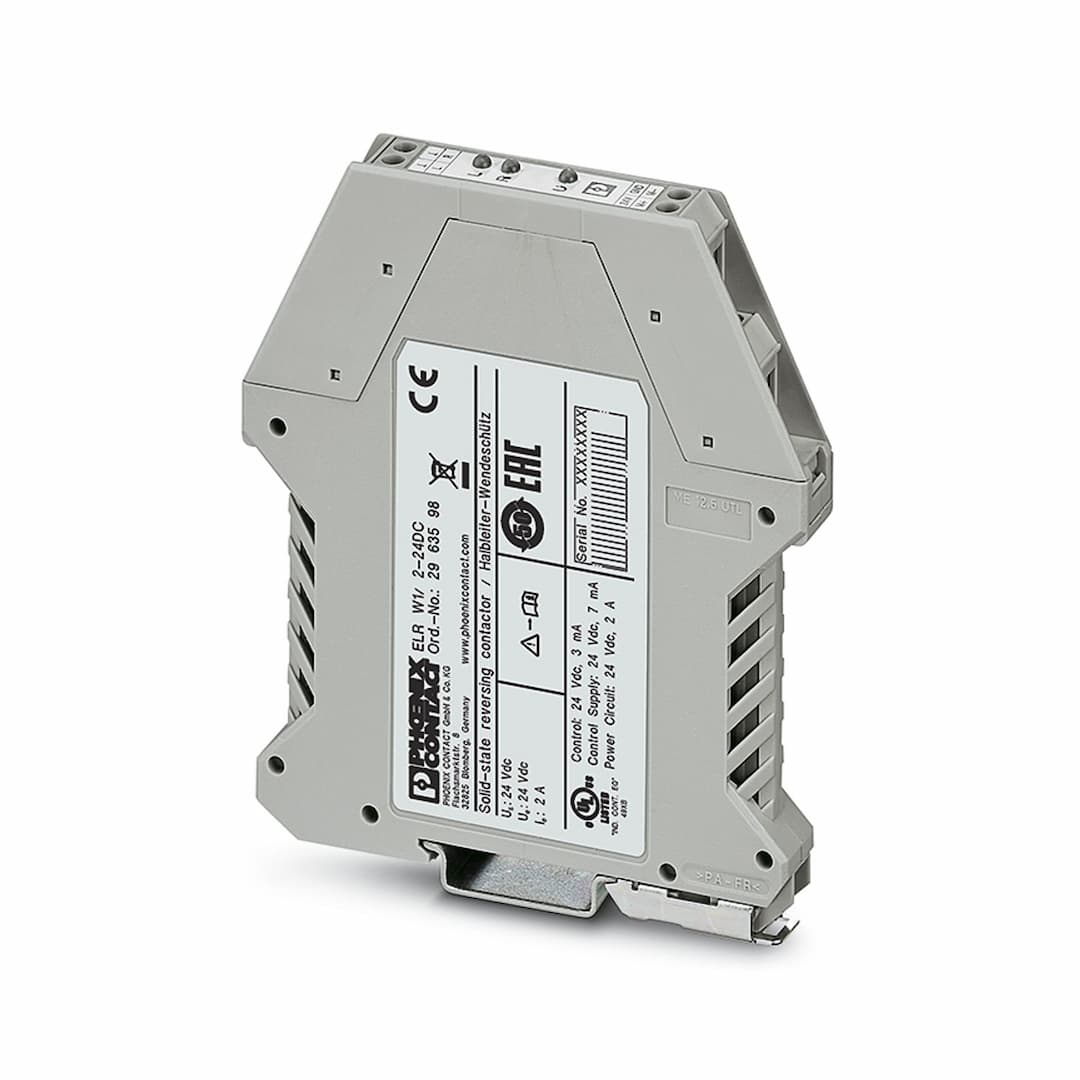

Product Model
ELR W1/ 2-24DC
Selling Points
- 1Efficient Motor Control: Controls DC motors with precision and reliability.
- 2Protective Circuit: Includes surge protection and reverse polarity protection.
- 3LED Display: Features a green LED for operating voltage display and yellow LEDs for forward and reverse running status.
- 4Compact Design: Compact dimensions (12.5 mm x 99 mm x 114.5 mm) for easy installation.
- 5UL Listed: Meets UL standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Product family | CONTACTRON |
Operating mode | 100% operating factor | Article revision | 09 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Number of phases | 1 |
Test voltage (Input/output) | 2.5 kV | Input name | Device supply |
Rated control circuit supply voltage U | 24 V DC | Control supply voltage range | 10 V DC ... 30 V DC |
Rated control supply current I | 7 mA | Protective circuit | Surge protection |
Input name | Control input right/left | Current consumption | 3 mA |
Rated actuating voltage U | 24 V DC | Triggering voltage range | 19.2 V DC ... 28.8 V DC |
Rated actuating current I | 3 mA | Typical response time | 200 µs |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
Switchover time R | 80 ms | Rated operating voltage U | 24 V DC |
Operating voltage range | 10 V DC ... 30 V DC | Rated operating current (Load output) | 2 A |
Load current | 2 A (Mounted in rows with zero spacing) | Quiescent current | approx. 7 mA (When switched off) |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
Current limitation at short-circuits | 15 A | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb | Status display | LED (yellow) |
Operating voltage display | Green LED | Width | 12.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 80 °C |
Certificate | UKCA-compliant | Certificate | NLDX.E228652 |
Standards/regulations | EN 50178 | Mounting type | DIN rail mounting |
Assembly note | alignable, for spacing see derating | Mounting position | vertical (horizontal DIN rail, motor output below) |
Specifications may be subject to change without notice
