Product Model

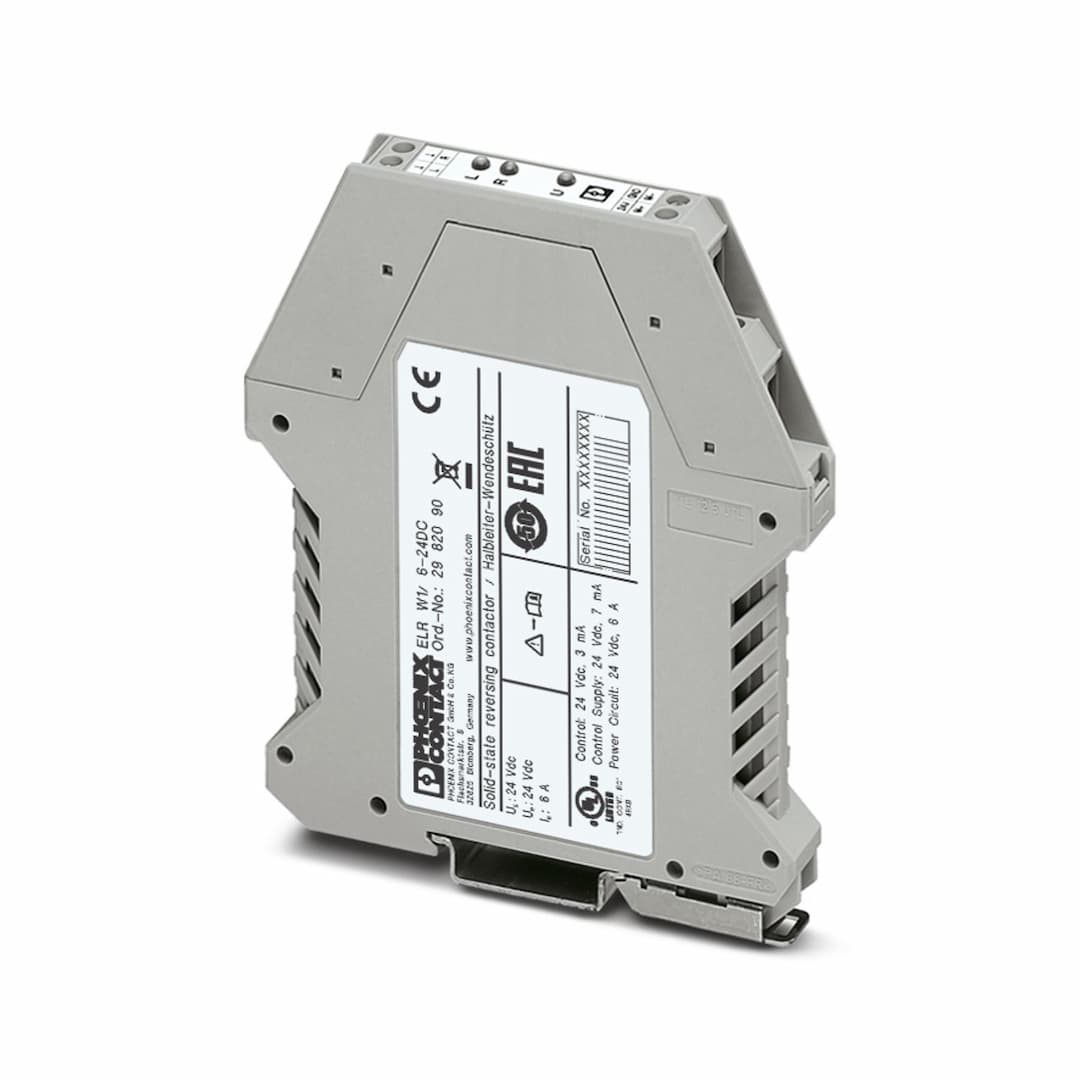

ELR W1/ 6-24DC
Selling Points
- 1Efficient DC Motor Control: The ELR W1/ 6-24DC is designed to control DC motors with precision, ensuring reliable operation.
- 2Surge Protection: Equipped with surge protection and reverse polarity protection, this relay safeguards your motor against electrical surges and incorrect connections.
- 3Compact Design: With dimensions of 12.5 mm x 99 mm x 114.5 mm, it fits seamlessly into your control panel without taking up too much space.
- 4LED Display: The green LED display provides clear status indication, making it easy to monitor the relay's operation.
- 5High Current Capacity: Capable of handling up to 6 A of load current, making it suitable for a variety of motor control applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state contactor | Product family | CONTACTRON |
Operating mode | 100% operating factor | Article revision | 08 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Number of phases | 1 |
Test voltage (Input/output) | 2.5 kV | Input name | Device supply |
Rated control circuit supply voltage U | 24 V DC | Control supply voltage range | 10 V DC ... 30 V DC |
Rated control supply current I | 7 mA | Protective circuit | Surge protection |
Input name | Control input right/left | Current consumption | 3 mA |
Rated actuating voltage U | 24 V DC | Triggering voltage range | 19.2 V DC ... 28.8 V DC |
Rated actuating current I | 3 mA | Typical response time | 200 µs |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
Switchover time R | 80 ms | Rated operating voltage U | 24 V DC |
Operating voltage range | 10 V DC ... 30 V DC | Rated operating current (Load output) | 6 A |
Load current | 6 A (see to derating) | Quiescent current | approx. 7 mA (When switched off) |
Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
Current limitation at short-circuits | 20 A | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb | Status display | LED (yellow) |
Operating voltage display | Green LED | Width | 12.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 80 °C |
Certificate | UKCA-compliant | Certificate | NLDX.E228652 |
Standards/regulations | EN 50178 | Mounting type | DIN rail mounting |
Assembly note | alignable, for spacing see derating | Mounting position | vertical (horizontal DIN rail, motor output below) |
Specifications may be subject to change without notice
